Braglia - 20019152ML - Valve 20 Bar: 10w

Braglia - 20019152ML - Valve 20 Bar: 10w

Braglia - 20019152ML - Valve 20 Bar: 10w

Braglia - 20019152ML - Valve 20 Bar: 10w

Number of products

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Free shipping

Pay Securely with

Braglia - 20019152ML - Valve 20 Bar: 10w

Braglia - 20019152ML - Valve 20 Bar: 10w

€154.41

(Excl. VAT)

Price

(Excl. VAT)

€154.41

Number of products

Braglia

Braglia specializes in agricultural machinery, particularly tractor attachments and implements for soil preparation and cultivation. The brand offers a range of high-performance tillers, harrows, and seeders designed for precision farming. Its products are known for their durability and compatibility with various tractor models. Shop more than 172 genuine Braglia spare parts.

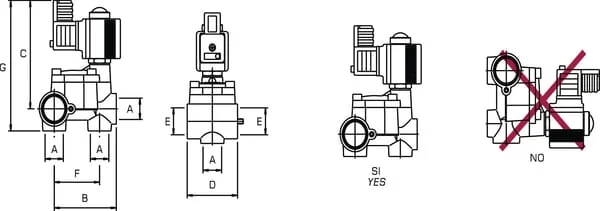

Product Details

Brand

Mesh

30

Unit

Each

BWidth

70 mm

Weight

1 kg

AThread

1/2" F Inch

DLength

57 mm

GHeight

127 mm

Voltage

12 V

Properties

Made from brass, plastic and stainless steel With immediate shutdown Low power consumption, continuous operation Encapsulated rotating coil (H-class 180°) with double FKM seal One work input, two outputs Patented modular system with built-in manifold

Pressure max.

20 BAR

Technical info

12 V, 2 A (NC servo) Cannot be arranged horizontally ML = without connection cable 80 l/min at 1 bar

Plug connection

DIN 43650 A IP 67

Application range

For industrial applications

Power consumption

18 W

EThread pass through

3/4" F (LH) mm

CHeight from top to center

104 mm

FDistance center to center

51.5 mm

Manufacturer

Braglia
