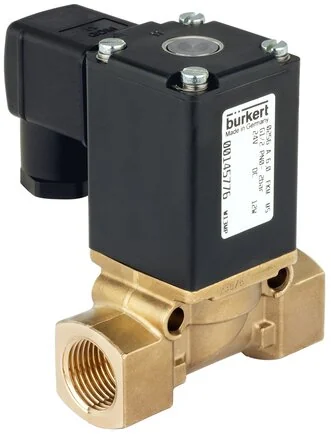

Burkert - 0256-A-04,0-BB-MS-GM83-024/DC--56086 - 2/2-Way Solenoid Valve

SKU: burkert-0256-a-04-0-bb-ms-gm83-024-dc-56086

Burkert - 0256-A-04,0-BB-MS-GM83-024/DC--56086 - 2/2-Way Solenoid Valve

€222.52€190.19 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€222.52

Brand
Burkert
CE Mark
Yes
AC Voltage
No
DC Voltage
Yes
Coil Size (mm)
40
Rated Power (W)
12
Mode Of Operation
A - in Ruhestellung geschlossen - Druckanschluss 1 (P/NC)
Material - Seal Seat
NBR (Nitrilkautschuk)
Line Connection 2 Type
Innengewinde
Nominal Pressure Min (bar)
0
Sealing To Outside Material
NBR (Nitrilkautschuk)
Seat Seal Material Category
Elastomere
Medium Temperature Max (°C)
90
Medium Temperature Min (°C)
-10
Ambient Temperature Max (°C)
55
Line Connection 2 Thread Type
G
Main Valve Nominal Size 1 (inch)
5/32
Voltage Max. / Rated Voltage (V)
24
Voltage Min. / Rated Voltage (V)
24
Main Valve Nominal Size 1 (P) (mm)
4
Nominal Pressure Max (Liquid) (bar)
6
Line Connection 2 Thread Designation
3/8
Main Valve Material, Media-contacting
Messing
Manufacturer
Burkert
