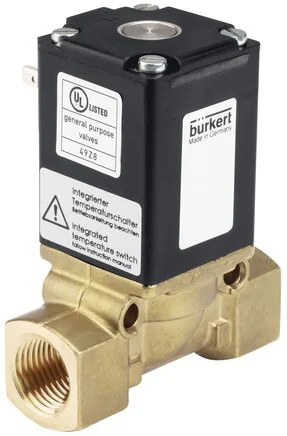

Burkert - 0290-A-12,0-BB-MS-GM84-230/50--42729 - 2/2-Way Solenoid Valve

SKU: burkert-0290-a-12-0-bb-ms-gm84-230-50-42729

Burkert - 0290-A-12,0-BB-MS-GM84-230/50--42729 - 2/2-Way Solenoid Valve

€187.98€160.67 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€187.98

Brand
Burkert
CE Mark
Yes
AC Voltage
Yes
DC Voltage
No
Coil Size (mm)
40
Rated Power (W)
10
Mode Of Operation
A - in Ruhestellung geschlossen - Druckanschluss 1 (P/NC)
Material - Seal Seat
NBR (Nitrilkautschuk)
Line Connection 2 Type
Innengewinde
Voltage Frequency (Hz)
50
Nominal Pressure Min (bar)
0
Pilot Control Seal Material
NBR (Nitrilkautschuk)
Sealing To Outside Material
NBR (Nitrilkautschuk)
Seat Seal Material Category
Elastomere
Medium Temperature Max (°C)
80
Medium Temperature Min (°C)
-10
Ambient Temperature Max (°C)
55
Line Connection 2 Thread Type
G
Main Valve Nominal Size 1 (inch)
7/16
Voltage Max. / Rated Voltage (V)
230
Voltage Min. / Rated Voltage (V)
230
Main Valve Nominal Size 1 (P) (mm)
12
Nominal Pressure Max (Liquid) (bar)
16
Line Connection 2 Thread Designation
1/2
Main Valve Material, Media-contacting
Messing
EAN
4053913032756
Manufacturer
Burkert
