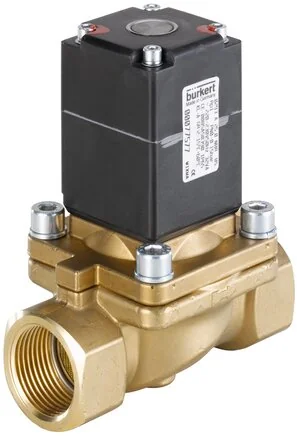

Burkert - 0293-A-20,0-BB-MS-GM85-230/50--279478 - 2/2-Way Solenoid Valve, Direct Acting

SKU: burkert-0293-a-20-0-bb-ms-gm85-230-50-279478

Burkert - 0293-A-20,0-BB-MS-GM85-230/50--279478 - 2/2-Way Solenoid Valve, Direct Acting

€429.75€367.31 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€429.75

Brand
Burkert
CE Mark
Yes
AC Voltage
Yes
DC Voltage
No
Coil Size (mm)
49
Rated Power (W)
16
Mode Of Operation
A - in Ruhestellung geschlossen - Druckanschluss 1 (P/NC)
Material - Seal Seat
NBR (Nitrilkautschuk)
Line Connection 2 Type
Innengewinde
Voltage Frequency (Hz)
50
Nominal Pressure Min (bar)
0
Sealing To Outside Material
NBR (Nitrilkautschuk)
Seat Seal Material Category
Elastomere
Medium Temperature Max (°C)
60
Medium Temperature Min (°C)
-15
Ambient Temperature Max (°C)
60
Ambient Temperature Min (°C)
-15
Line Connection 2 Thread Type
G
Main Valve Nominal Size 1 (inch)
3/4
Nominal Pressure Max (Gas) (bar)
0,15
Voltage Max. / Rated Voltage (V)
230
Voltage Min. / Rated Voltage (V)
230
Main Valve Nominal Size 1 (P) (mm)
20
Nominal Pressure Max (Liquid) (bar)
0,15
Line Connection 2 Thread Designation
3/4
Main Valve Material, Media-contacting
Messing
Manufacturer
Burkert
