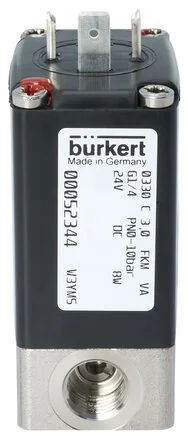

Burkert - 0330-A-03,0-AA-VA-GM82-024/DC--468527 - 2/2-Way Solenoid Valve, Direct Acting

SKU: burkert-0330-a-03-0-aa-va-gm82-024-dc-468527

Burkert - 0330-A-03,0-AA-VA-GM82-024/DC--468527 - 2/2-Way Solenoid Valve, Direct Acting

€396.65€339.02 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€396.65

Brand
Burkert
CE Mark
Yes
AC Voltage
No
DC Voltage
Yes
Rated Power (W)
8
Mode Of Operation
A - in Ruhestellung geschlossen - Druckanschluss 1 (P/NC)
Valve Seat Material
Edelstahl
Material - Seal Seat
EPDM (Ethylen-Propylen-Dien-Kautschuk)
Line Connection 2 Type
Innengewinde
Nominal Pressure Min (bar)
0
Sealing To Outside Material
EPDM (Ethylen-Propylen-Dien-Kautschuk)
Seat Seal Material Category
Elastomere
Medium Temperature Max (°C)
90
Medium Temperature Min (°C)
-30
Ambient Temperature Max (°C)
55
Line Connection 2 Thread Type
G
Surface Temperature Max (°C)
155
Main Valve Nominal Size 1 (inch)
1/8
Voltage Max. / Rated Voltage (V)
24
Voltage Min. / Rated Voltage (V)
24
Main Valve Nominal Size 1 (P) (mm)
3
Nominal Pressure Max (Liquid) (bar)
10
Line Connection 2 Thread Designation
1/4
Main Valve Material, Media-contacting
Edelstahl
Manufacturer
Burkert
