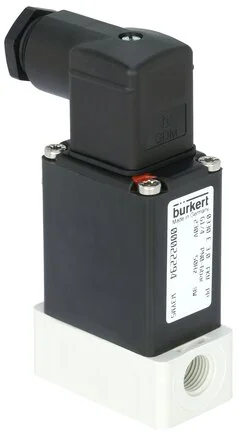

Burkert - 0330-A-03,0-FF-PP-GM82-230/50--45653 - 2/2-Way Solenoid Valve

SKU: burkert-0330-a-03-0-ff-pp-gm82-230-50-45653

Burkert - 0330-A-03,0-FF-PP-GM82-230/50--45653 - 2/2-Way Solenoid Valve

€280.09€239.39 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€280.09

Brand
Burkert
CE Mark
Yes
AC Voltage
Yes
DC Voltage
No
Rated Power (W)
8
Mode Of Operation
A - in Ruhestellung geschlossen - Druckanschluss 1 (P/NC)
Valve Seat Material
PP (Polypropylen)
Material - Seal Seat
FKM (Fluorkautschuk)
Line Connection 2 Type
Innengewinde
Voltage Frequency (Hz)
50
Nominal Pressure Min (bar)
0
Sealing To Outside Material
FKM (Fluorkautschuk)
Seat Seal Material Category
Elastomere
Medium Temperature Max (°C)
80
Medium Temperature Min (°C)
0
Ambient Temperature Max (°C)
55
Line Connection 2 Thread Type
G
Surface Temperature Max (°C)
150
Main Valve Nominal Size 1 (inch)
1/8
Voltage Max. / Rated Voltage (V)
230
Voltage Min. / Rated Voltage (V)
230
Main Valve Nominal Size 1 (P) (mm)
3
Nominal Pressure Max (Liquid) (bar)
10
Line Connection 2 Thread Designation
1/4
Main Valve Material, Media-contacting
PP (Polypropylen)
EAN
4053913001707
Manufacturer
Burkert
