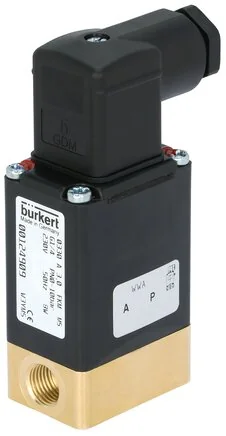

Burkert - 0330-B-03,0-FF-MS-GM82-024/50--130146 - 2/2-Way Solenoid Valve, Direct Acting

SKU: burkert-0330-b-03-0-ff-ms-gm82-024-50-130146

Burkert - 0330-B-03,0-FF-MS-GM82-024/50--130146 - 2/2-Way Solenoid Valve, Direct Acting

€262.82€224.63 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€262.82

Brand
Burkert
CE Mark
Yes
AC Voltage
Yes
DC Voltage
No
Rated Power (W)
8
Mode Of Operation
B - in Ruhestellung geöffnet - Druckanschluss 1 (P/NO)
Valve Seat Material
Messing
Material - Seal Seat
FKM (Fluorkautschuk)
Line Connection 2 Type
Innengewinde
Voltage Frequency (Hz)
50
Nominal Pressure Min (bar)
0
Sealing To Outside Material
FKM (Fluorkautschuk)
Seat Seal Material Category
Elastomere
Medium Temperature Max (°C)
90
Medium Temperature Min (°C)
0
Ambient Temperature Max (°C)
55
Line Connection 2 Thread Type
G
Surface Temperature Max (°C)
150
Main Valve Nominal Size 1 (inch)
1/8
Voltage Max. / Rated Voltage (V)
24
Voltage Min. / Rated Voltage (V)
24
Main Valve Nominal Size 1 (P) (mm)
3
Nominal Pressure Max (Liquid) (bar)
10
Line Connection 2 Thread Designation
1/4
Main Valve Material, Media-contacting
Messing
EAN
4053913004050
Manufacturer
Burkert
