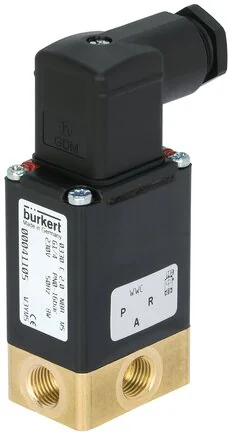

Burkert - 0330-C-03,0-BB-MS-GM82-024/50--41108 - 3/2-Way Solenoid Valve

SKU: burkert-0330-c-03-0-bb-ms-gm82-024-50-41108

Burkert - 0330-C-03,0-BB-MS-GM82-024/50--41108 - 3/2-Way Solenoid Valve

€231.16€197.57 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€231.16

Brand
Burkert
CE Mark
Yes
AC Voltage
Yes
DC Voltage
No
Rated Power (W)
8
Mode Of Operation
C - in Ruhestellung geschlossen - Druckanschluss 1 (P/NC), Arbeitsanschluss 2 (A/OUT) nach Anschluss 3 (R/NO) offen
Valve Seat Material
Messing
Material - Seal Seat
NBR (Nitrilkautschuk)
Line Connection 2 Type
Innengewinde
Voltage Frequency (Hz)
50
Nominal Pressure Min (bar)
0
Sealing To Outside Material
NBR (Nitrilkautschuk)
Seat Seal Material Category
Elastomere
Medium Temperature Max (°C)
80
Medium Temperature Min (°C)
0
Ambient Temperature Max (°C)
55
Line Connection 2 Thread Type
G
Surface Temperature Max (°C)
150
Main Valve Nominal Size 1 (inch)
1/8
Voltage Max. / Rated Voltage (V)
24
Voltage Min. / Rated Voltage (V)
24
Main Valve Nominal Size 1 (P) (mm)
3
Main Valve Nominal Size 3 (R) (mm)
3
Nominal Pressure Max (Liquid) (bar)
10
Line Connection 2 Thread Designation
1/4
Main Valve Material, Media-contacting
Messing
Manufacturer
Burkert
