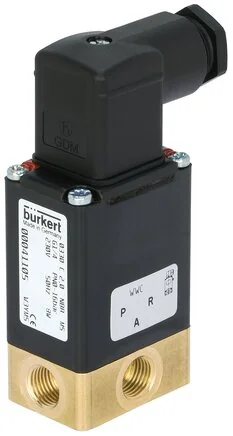

Burkert - 0330-F-04,0-BB-MS-GM82-024/56--246469 - 3/2-Way Solenoid Valve, Direct Acting

SKU: burkert-0330-f-04-0-bb-ms-gm82-024-56-246469

Browse all parts
Burkert - 0330-F-04,0-BB-MS-GM82-024/56--246469 - 3/2-Way Solenoid Valve, Direct Acting

€225.40€192.65 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€225.40

Brand
Burkert
CE Mark
Yes
AC Voltage
Yes
DC Voltage
No
Rated Power (W)
8
Mode Of Operation
F - Verteilerventil - in Ruhestellung Druckanschluss 1 (P/IN) nach Arbeitsanschluss 2 (B/NO) geöffnet, Arbeitsanschluss 4 (A/NC) ges
Voltage Frequency
50/60 Hz
Valve Seat Material
Messing
Material - Seal Seat
NBR (Nitrilkautschuk)
Line Connection 2 Type
Innengewinde
Nominal Pressure Min (bar)
0
Sealing To Outside Material
NBR (Nitrilkautschuk)
Seat Seal Material Category
Elastomere
Medium Temperature Max (°C)
80
Medium Temperature Min (°C)
0
Ambient Temperature Max (°C)
55
Line Connection 2 Thread Type
G
Surface Temperature Max (°C)
150
Main Valve Nominal Size 1 (inch)
5/32
Voltage Max. / Rated Voltage (V)
24
Voltage Min. / Rated Voltage (V)
24
Main Valve Nominal Size 1 (P) (mm)
4
Main Valve Nominal Size 3 (R) (mm)
4
Nominal Pressure Max (Liquid) (bar)
5
Line Connection 2 Thread Designation
1/4
Main Valve Material, Media-contacting
Messing
EAN
4053913056998
Manufacturer
Burkert
