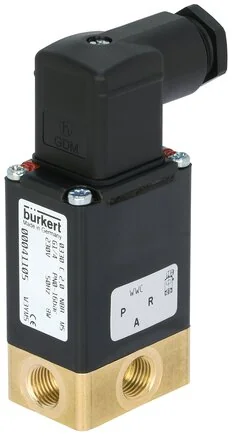

Burkert - 0330-T-03,0-FF-MS-GM82-024/50--124928 - 3/2-Way Solenoid Valve, Direct Acting

SKU: burkert-0330-t-03-0-ff-ms-gm82-024-50-124928

Browse all parts
Burkert - 0330-T-03,0-FF-MS-GM82-024/50--124928 - 3/2-Way Solenoid Valve, Direct Acting

€262.82€224.63 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€262.82

Brand
Burkert
CE Mark
Yes
AC Voltage
Yes
DC Voltage
No
Rated Power (W)
8
Mode Of Operation
T - universal einsetzbar - Anschlussbelegung 1 (P/NC), 2 (A/in/out) und3 (R/NO) nach Einsatz
Valve Seat Material
Messing
Material - Seal Seat
FKM (Fluorkautschuk)
Line Connection 2 Type
Innengewinde
Voltage Frequency (Hz)
50
Nominal Pressure Min (bar)
0
Sealing To Outside Material
FKM (Fluorkautschuk)
Seat Seal Material Category
Elastomere
Medium Temperature Max (°C)
90
Medium Temperature Min (°C)
0
Ambient Temperature Max (°C)
55
Line Connection 2 Thread Type
G
Surface Temperature Max (°C)
150
Main Valve Nominal Size 1 (inch)
1/8
Voltage Max. / Rated Voltage (V)
24
Voltage Min. / Rated Voltage (V)
24
Main Valve Nominal Size 1 (P) (mm)
3
Main Valve Nominal Size 3 (R) (mm)
3
Nominal Pressure Max (Liquid) (bar)
8
Line Connection 2 Thread Designation
1/4
Main Valve Material, Media-contacting
Messing
Manufacturer
Burkert
