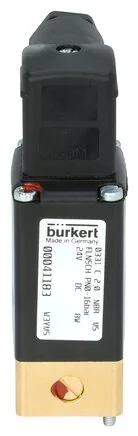

Burkert - 0331-C-02,0-BB-MS-FB02-024/DC--41183 - 3/2-Way Solenoid Valve

SKU: burkert-0331-c-02-0-bb-ms-fb02-024-dc-41183

Browse all parts
Burkert - 0331-C-02,0-BB-MS-FB02-024/DC--41183 - 3/2-Way Solenoid Valve

€209.57€179.12 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€209.57

Brand
Burkert
CE Mark
Yes
AC Voltage
No
DC Voltage
Yes
Rated Power (W)
8
Mode Of Operation
C - in Ruhestellung geschlossen - Druckanschluss 1 (P/NC), Arbeitsanschluss 2 (A/OUT) nach Anschluss 3 (R/NO) offen
Valve Seat Material
Messing
Material - Seal Seat
NBR (Nitrilkautschuk)
Line Connection 2 Type
Flansch
Nominal Pressure Min (bar)
0
Sealing To Outside Material
NBR (Nitrilkautschuk)
Seat Seal Material Category
Elastomere
Medium Temperature Max (°C)
80
Medium Temperature Min (°C)
0
Ambient Temperature Max (°C)
55
Surface Temperature Max (°C)
155
Main Valve Nominal Size 1 (inch)
5/64
Voltage Max. / Rated Voltage (V)
24
Voltage Min. / Rated Voltage (V)
24
Main Valve Nominal Size 1 (P) (mm)
2
Main Valve Nominal Size 3 (R) (mm)
2
Nominal Pressure Max (Liquid) (bar)
16
Main Valve Material, Media-contacting
Messing
Manufacturer
Burkert
