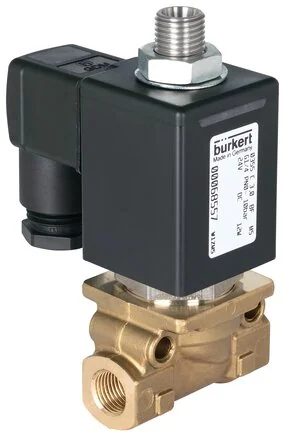

Burkert - 0355-C-02,0-EF-MS-GM82-024/DC--62188 - 3/2-Way Solenoid Valve

SKU: burkert-0355-c-02-0-ef-ms-gm82-024-dc-62188

Browse all parts
Burkert - 0355-C-02,0-EF-MS-GM82-024/DC--62188 - 3/2-Way Solenoid Valve

€294.48€251.69 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€294.48

Brand
Burkert
CE Mark
Yes
AC Voltage
No
DC Voltage
Yes
Coil Size (mm)
40
Rated Power (W)
12
Mode Of Operation
C - in Ruhestellung geschlossen - Druckanschluss 1 (P/NC), Arbeitsanschluss 2 (A/OUT) nach Anschluss 3 (R/NO) offen
Valve Seat Material
Edelstahl
Material - Seal Seat
PTFE (Polytetrafluorethylen)
Line Connection 2 Type
Innengewinde
Nominal Pressure Min (bar)
0
Sealing To Outside Material
Messing und Edelstahl
Seat Seal Material Category
Kunststoffe
Medium Temperature Max (°C)
180
Medium Temperature Min (°C)
-40
Ambient Temperature Max (°C)
55
Ambient Temperature Min (°C)
-40
Line Connection 2 Thread Type
G
Main Valve Nominal Size 1 (inch)
5/64
Voltage Max. / Rated Voltage (V)
24
Voltage Min. / Rated Voltage (V)
24
Main Valve Nominal Size 1 (P) (mm)
2
Nominal Pressure Max (Liquid) (bar)
14
Line Connection 2 Thread Designation
1/4
Main Valve Material, Media-contacting
Messing
Manufacturer
Burkert
