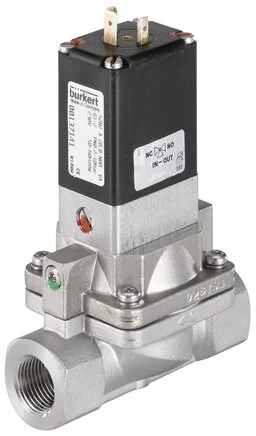

Burkert - 5282-00-A13,0FFVAGM84-0-230/56-220294 - 2/2-Way Solenoid Valve, Servo Controlled

SKU: burkert-5282-00-a13-0ffvagm84-0-230-56-220294

Burkert - 5282-00-A13,0FFVAGM84-0-230/56-220294 - 2/2-Way Solenoid Valve, Servo Controlled

€700.30€598.55 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€700.30

Brand
Burkert
CE Mark
Yes
AC Voltage
Yes
DC Voltage
No
Rated Power (W)
8
Mode Of Operation
A - in Ruhestellung geschlossen - Druckanschluss 1 (P/NC)
Voltage Frequency
50/60 Hz
Material - Seal Seat
FKM (Fluorkautschuk)
Line Connection 2 Type
Innengewinde
Nominal Pressure Min (bar)
0,2
Pilot Control Seal Material
FKM (Fluorkautschuk)
Sealing To Outside Material
FKM (Fluorkautschuk)
Seat Seal Material Category
Elastomere
Medium Temperature Max (°C)
90
Medium Temperature Min (°C)
0
Ambient Temperature Max (°C)
55
Line Connection 2 Thread Type
G
Main Valve Nominal Size 1 (inch)
1/2
Voltage Max. / Rated Voltage (V)
230
Voltage Min. / Rated Voltage (V)
230
Main Valve Nominal Size 1 (P) (mm)
13
Nominal Pressure Max (Liquid) (bar)
10
Line Connection 2 Thread Designation
1/2
Main Valve Material, Media-contacting
Edelstahl
Pilot Control Material, Media Contact
Edelstahl
EAN
4053913015971
Manufacturer
Burkert
