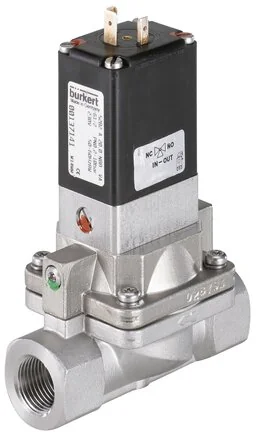

Burkert - 5282-00-A25,0FFVAGM86-0-024/DC-134522 - 2/2-Way Solenoid Valve, Servo Controlled

SKU: burkert-5282-00-a25-0ffvagm86-0-024-dc-134522

Browse all parts
Burkert - 5282-00-A25,0FFVAGM86-0-024/DC-134522 - 2/2-Way Solenoid Valve, Servo Controlled

€1,350.78€1,154.51 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€1,350.78

Brand
Burkert
CE Mark
Yes
AC Voltage
No
DC Voltage
Yes
Rated Power (W)
8
Mode Of Operation
A - in Ruhestellung geschlossen - Druckanschluss 1 (P/NC)
Material - Seal Seat
FKM (Fluorkautschuk)
Line Connection 2 Type
Innengewinde
Nominal Pressure Min (bar)
0,2
Pilot Control Seal Material
FKM (Fluorkautschuk)
Sealing To Outside Material
FKM (Fluorkautschuk)
Seat Seal Material Category
Elastomere
Medium Temperature Max (°C)
90
Medium Temperature Min (°C)
0
Ambient Temperature Max (°C)
55
Line Connection 2 Thread Type
G
Main Valve Nominal Size 1 (inch)
1
Voltage Max. / Rated Voltage (V)
24
Voltage Min. / Rated Voltage (V)
24
Main Valve Nominal Size 1 (P) (mm)
25
Nominal Pressure Max (Liquid) (bar)
10
Line Connection 2 Thread Designation
1
Main Valve Material, Media-contacting
Edelstahl
Pilot Control Material, Media Contact
Edelstahl
EAN
4053913006481
Manufacturer
Burkert
