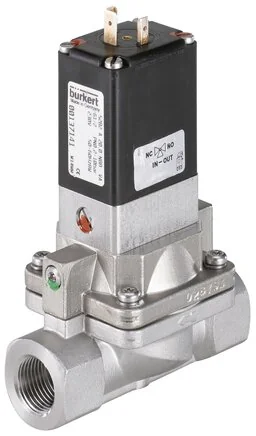

Burkert - 5282-00-A50,0BBMSGM89-0-024/56-134451 - 2/2-Way Solenoid Valve, Servo Controlled

SKU: burkert-5282-00-a50-0bbmsgm89-0-024-56-134451

Browse all parts
Burkert - 5282-00-A50,0BBMSGM89-0-024/56-134451 - 2/2-Way Solenoid Valve, Servo Controlled

€942.07€805.19 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€942.07

Brand
Burkert
CE Mark
Yes
AC Voltage
Yes
DC Voltage
No
Rated Power (W)
8
Mode Of Operation
A - in Ruhestellung geschlossen - Druckanschluss 1 (P/NC)
Voltage Frequency
50/60 Hz
Material - Seal Seat
NBR (Nitrilkautschuk)
Line Connection 2 Type
Innengewinde
Ambient Temperature Min
Yes
Nominal Pressure Min (bar)
0,2
Pilot Control Seal Material
NBR (Nitrilkautschuk)
Sealing To Outside Material
NBR (Nitrilkautschuk)
Seat Seal Material Category
Elastomere
Medium Temperature Max (°C)
80
Medium Temperature Min (°C)
0
Ambient Temperature Max (°C)
55
Line Connection 2 Thread Type
G
Main Valve Nominal Size 1 (inch)
2
Voltage Max. / Rated Voltage (V)
24
Voltage Min. / Rated Voltage (V)
24
Main Valve Nominal Size 1 (P) (mm)
50
Nominal Pressure Max (Liquid) (bar)
10
Line Connection 2 Thread Designation
2
Main Valve Material, Media-contacting
Messing
Pilot Control Material, Media Contact
Messing
Manufacturer
Burkert
