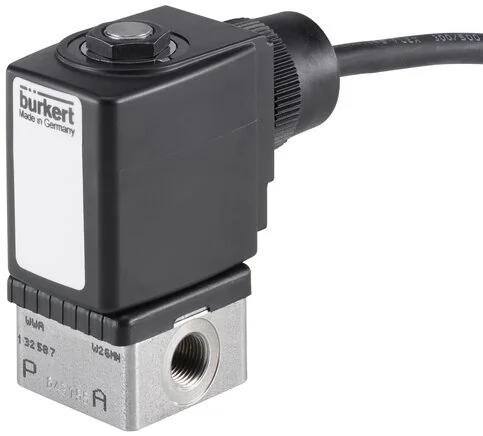

Burkert - 6013-A02,0FFVAGM81-6-024/UC-09-351900 - 2/2-Way Solenoid Valve, Direct Acting

SKU: burkert-6013-a02-0ffvagm81-6-024-uc-09-351900

Browse all parts
Burkert - 6013-A02,0FFVAGM81-6-024/UC-09-351900 - 2/2-Way Solenoid Valve, Direct Acting

€369.31€315.65 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€369.31

Brand
Burkert
CE Mark
Yes
AC Voltage
Yes
DC Voltage
Yes
Coil Size (mm)
40
Rated Power (W)
9
Mode Of Operation
A - in Ruhestellung geschlossen - Druckanschluss 1 (P/NC)
Voltage Frequency
50/60 Hz
Material - Seal Seat
FKM (Fluorkautschuk)
Line Connection 2 Type
Innengewinde
Nominal Pressure Min (bar)
0
Sealing To Outside Material
FKM (Fluorkautschuk)
Seat Seal Material Category
Elastomere
Medium Temperature Max (°C)
100
Medium Temperature Min (°C)
-10
Ambient Temperature Max (°C)
55
Ambient Temperature Min (°C)
-10
Line Connection 2 Thread Type
G
Main Valve Nominal Size 1 (inch)
5/64
Nominal Pressure Max (Gas) (bar)
10
Voltage Max. / Rated Voltage (V)
24
Voltage Min. / Rated Voltage (V)
24
Main Valve Nominal Size 1 (P) (mm)
2
Nominal Pressure Max (Liquid) (bar)
10
Line Connection 2 Thread Designation
1/8
Main Valve Material, Media-contacting
Edelstahl
Manufacturer
Burkert
