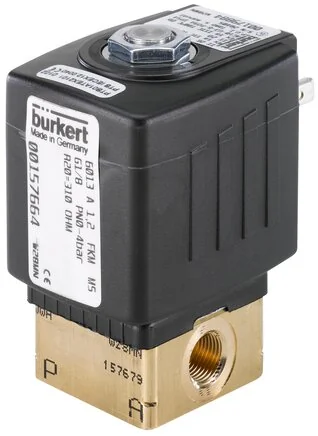

Burkert - 6013-A02,5FFMSGM81-5-024/50-08-134241 - 2/2-Way Solenoid Valve, Direct Acting

SKU: burkert-6013-a02-5ffmsgm81-5-024-50-08-134241

Browse all parts
Burkert - 6013-A02,5FFMSGM81-5-024/50-08-134241 - 2/2-Way Solenoid Valve, Direct Acting

€112.44€96.10 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€112.44

Brand
Burkert
CE Mark
Yes
AC Voltage
Yes
DC Voltage
No
Coil Size (mm)
32
Rated Power (W)
8
Mode Of Operation
A - in Ruhestellung geschlossen - Druckanschluss 1 (P/NC)
Material - Seal Seat
FKM (Fluorkautschuk)
Line Connection 2 Type
Innengewinde
Voltage Frequency (Hz)
50
Nominal Pressure Min (bar)
0
Sealing To Outside Material
FKM (Fluorkautschuk)
Seat Seal Material Category
Elastomere
Medium Temperature Max (°C)
100
Medium Temperature Min (°C)
-10
Ambient Temperature Max (°C)
55
Ambient Temperature Min (°C)
-10
Line Connection 2 Thread Type
G
Main Valve Nominal Size 1 (inch)
7/64
Nominal Pressure Max (Gas) (bar)
16
Voltage Max. / Rated Voltage (V)
24
Voltage Min. / Rated Voltage (V)
24
Main Valve Nominal Size 1 (P) (mm)
2,5
Nominal Pressure Max (Liquid) (bar)
16
Line Connection 2 Thread Designation
1/8
Main Valve Material, Media-contacting
Messing
EAN
4053913005583
Manufacturer
Burkert
