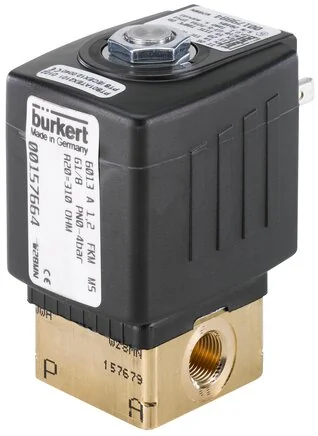

Burkert - 6013-A03,0EGMSGM83-6-024/DC-10-136023 - 2/2-Way Solenoid Valve, Direct Acting

SKU: burkert-6013-a03-0egmsgm83-6-024-dc-10-136023

Browse all parts
Burkert - 6013-A03,0EGMSGM83-6-024/DC-10-136023 - 2/2-Way Solenoid Valve, Direct Acting

€209.57€179.12 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€209.57

Brand
Burkert
CE Mark
Yes
AC Voltage
No
DC Voltage
Yes
Coil Size (mm)
40
Rated Power (W)
10
Mode Of Operation
A - in Ruhestellung geschlossen - Druckanschluss 1 (P/NC)
Valve Seat Material
Edelstahl
Material - Seal Seat
PTFE (Polytetrafluorethylen)
Line Connection 2 Type
Innengewinde
Nominal Pressure Min (bar)
0
Sealing To Outside Material
Graphit
Seat Seal Material Category
Kunststoffe
Medium Temperature Max (°C)
180
Medium Temperature Min (°C)
-40
Ambient Temperature Max (°C)
55
Ambient Temperature Min (°C)
-40
Line Connection 2 Thread Type
G
Main Valve Nominal Size 1 (inch)
1/8
Nominal Pressure Max (Gas) (bar)
8
Voltage Max. / Rated Voltage (V)
24
Voltage Min. / Rated Voltage (V)
24
Main Valve Nominal Size 1 (P) (mm)
3
Nominal Pressure Max (Liquid) (bar)
8
Line Connection 2 Thread Designation
3/8
Main Valve Material, Media-contacting
Messing
EAN
4053913007242
Manufacturer
Burkert
