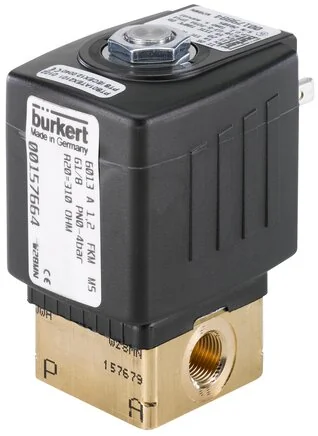

Burkert - 6013-A06,0BBMSGM82-5-230/50-08-301072 - 2/2-Way Solenoid Valve, Direct Acting

SKU: burkert-6013-a06-0bbmsgm82-5-230-50-08-301072

Browse all parts
Burkert - 6013-A06,0BBMSGM82-5-230/50-08-301072 - 2/2-Way Solenoid Valve, Direct Acting

€128.84€110.12 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€128.84

Brand
Burkert
CE Mark
Yes
AC Voltage
Yes
DC Voltage
No
Coil Size (mm)
32
Rated Power (W)
8
Mode Of Operation
A - in Ruhestellung geschlossen - Druckanschluss 1 (P/NC)
Material - Seal Seat
NBR (Nitrilkautschuk)
Line Connection 2 Type
Innengewinde
Voltage Frequency (Hz)
50
Nominal Pressure Min (bar)
0
Sealing To Outside Material
NBR (Nitrilkautschuk)
Seat Seal Material Category
Elastomere
Medium Temperature Max (°C)
80
Medium Temperature Min (°C)
0
Ambient Temperature Max (°C)
55
Ambient Temperature Min (°C)
0
Line Connection 2 Thread Type
G
Main Valve Nominal Size 1 (inch)
1/4
Nominal Pressure Max (Gas) (bar)
1,5
Voltage Max. / Rated Voltage (V)
230
Voltage Min. / Rated Voltage (V)
230
Main Valve Nominal Size 1 (P) (mm)
6
Nominal Pressure Max (Liquid) (bar)
1,5
Line Connection 2 Thread Designation
1/4
Main Valve Material, Media-contacting
Messing
EAN
4053913078556
Manufacturer
Burkert
