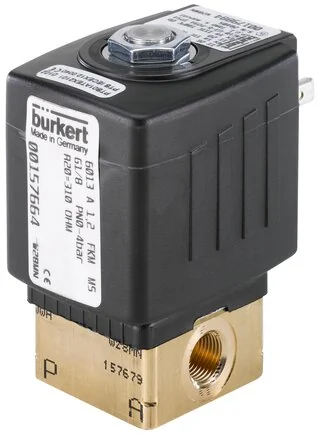

Burkert - 6013-B02,5FFMSGM81-5-012/DC-08-217497 - 2/2-Way Solenoid Valve, Direct Acting

SKU: burkert-6013-b02-5ffmsgm81-5-012-dc-08-217497

Browse all parts
Burkert - 6013-B02,5FFMSGM81-5-012/DC-08-217497 - 2/2-Way Solenoid Valve, Direct Acting

€180.79€154.52 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€180.79

Brand
Burkert
CE Mark
Yes
AC Voltage
No
DC Voltage
Yes
Coil Size (mm)
32
Rated Power (W)
8
Mode Of Operation
B - in Ruhestellung geöffnet - Druckanschluss 1 (P/NO)
Material - Seal Seat
FKM (Fluorkautschuk)
Line Connection 2 Type
Innengewinde
Nominal Pressure Min (bar)
0
Sealing To Outside Material
FKM (Fluorkautschuk)
Seat Seal Material Category
Elastomere
Medium Temperature Max (°C)
120
Medium Temperature Min (°C)
-10
Ambient Temperature Max (°C)
55
Ambient Temperature Min (°C)
-10
Line Connection 2 Thread Type
G
Main Valve Nominal Size 1 (inch)
7/64
Nominal Pressure Max (Gas) (bar)
12
Voltage Max. / Rated Voltage (V)
12
Voltage Min. / Rated Voltage (V)
12
Main Valve Nominal Size 1 (P) (mm)
2,5
Nominal Pressure Max (Liquid) (bar)
12
Line Connection 2 Thread Designation
1/8
Main Valve Material, Media-contacting
Messing
Manufacturer
Burkert
