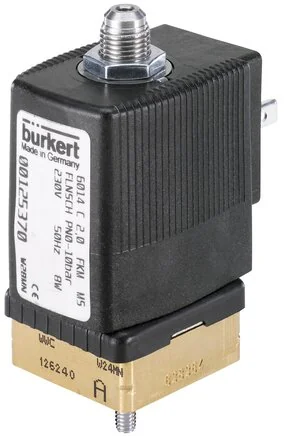

Burkert - 6014-C02,0FFMSFB01-5-024/50-08-125368 - 3/2-Way Solenoid Valve, Direct Acting

SKU: burkert-6014-c02-0ffmsfb01-5-024-50-08-125368

Browse all parts
Burkert - 6014-C02,0FFMSFB01-5-024/50-08-125368 - 3/2-Way Solenoid Valve, Direct Acting

€100.92€86.26 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€100.92

Brand
Burkert
CE Mark
Yes
AC Voltage
Yes
DC Voltage
No
Coil Size (mm)
32
Rated Power (W)
8
Mode Of Operation
C - in Ruhestellung geschlossen - Druckanschluss 1 (P/NC), Arbeitsanschluss 2 (A/OUT) nach Anschluss 3 (R/NO) offen
Material - Seal Seat
FKM (Fluorkautschuk)
Line Connection 2 Type
Flansch
Voltage Frequency (Hz)
50
Nominal Pressure Min (bar)
0
Sealing To Outside Material
FKM (Fluorkautschuk)
Seat Seal Material Category
Elastomere
Medium Temperature Max (°C)
100
Medium Temperature Min (°C)
-10
Ambient Temperature Max (°C)
55
Ambient Temperature Min (°C)
-10
Main Valve Nominal Size 1 (inch)
5/64
Nominal Pressure Max (Gas) (bar)
10
Voltage Max. / Rated Voltage (V)
24
Voltage Min. / Rated Voltage (V)
24
Main Valve Nominal Size 1 (P) (mm)
2
Nominal Pressure Max (Liquid) (bar)
10
Main Valve Material, Media-contacting
Messing
EAN
4053913003312
Manufacturer
Burkert
