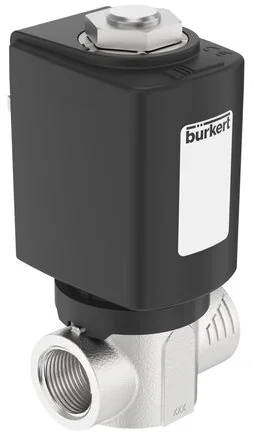

Burkert - 6027-A06,0FFVAGM84-K-230/50-16-178277 - 2/2-Way Solenoid Valve

SKU: burkert-6027-a06-0ffvagm84-k-230-50-16-178277

Browse all parts
Burkert - 6027-A06,0FFVAGM84-K-230/50-16-178277 - 2/2-Way Solenoid Valve

€278.65€238.16 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€278.65

Brand
Burkert
CE Mark
Yes
AC Voltage
Yes
DC Voltage
No
Coil Size (mm)
42
Rated Power (W)
16
Mode Of Operation
A - in Ruhestellung geschlossen - Druckanschluss 1 (P/NC)
Valve Seat Material
Edelstahl
Material - Seal Seat
FKM (Fluorkautschuk)
Line Connection 2 Type
Innengewinde
Voltage Frequency (Hz)
50
Nominal Pressure Min (bar)
0
Sealing To Outside Material
FKM (Fluorkautschuk)
Seat Seal Material Category
Elastomere
Medium Temperature Max (°C)
140
Medium Temperature Min (°C)
-10
Ambient Temperature Max (°C)
55
Ambient Temperature Min (°C)
-10
Line Connection 2 Thread Type
G
Main Valve Nominal Size 1 (inch)
1/4
Nominal Pressure Max (Gas) (bar)
6
Voltage Max. / Rated Voltage (V)
230
Voltage Min. / Rated Voltage (V)
230
Main Valve Nominal Size 1 (P) (mm)
6
Nominal Pressure Max (Liquid) (bar)
6
Line Connection 2 Thread Designation
1/2
Main Valve Material, Media-contacting
Edelstahl
EAN
4053913013786
Manufacturer
Burkert
