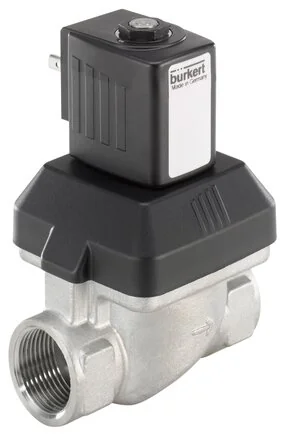

Burkert - 6213-EV-A40,0AAVAGM88-K-230/50-222203 - 2/2-Way Solenoid Valve, Forced Controlled

SKU: burkert-6213-ev-a40-0aavagm88-k-230-50-222203

Browse all parts
Burkert - 6213-EV-A40,0AAVAGM88-K-230/50-222203 - 2/2-Way Solenoid Valve, Forced Controlled

€1,275.94€1,090.55 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€1,275.94

Brand
Burkert
CE Mark
Yes
AC Voltage
Yes
DC Voltage
No
Coil Size (mm)
42
Rated Power (W)
16
Mode Of Operation
A - in Ruhestellung geschlossen - Druckanschluss 1 (P/NC)
Valve Seat Material
Edelstahl
Material - Seal Seat
EPDM (Ethylen-Propylen-Dien-Kautschuk)
Line Connection 2 Type
Innengewinde
Voltage Frequency (Hz)
50
Nominal Pressure Min (bar)
0
Pilot Control Seal Material
EPDM (Ethylen-Propylen-Dien-Kautschuk)
Sealing To Outside Material
EPDM (Ethylen-Propylen-Dien-Kautschuk)
Seat Seal Material Category
Elastomere
Medium Temperature Max (°C)
100
Medium Temperature Min (°C)
-30
Ambient Temperature Max (°C)
55
Ambient Temperature Min (°C)
-30
Line Connection 2 Thread Type
G
Nominal Pressure (DIN EN 1333)
PN 10
Main Valve Nominal Size 1 (inch)
1 1/2
Voltage Max. / Rated Voltage (V)
230
Voltage Min. / Rated Voltage (V)
230
Main Valve Nominal Size 1 (P) (mm)
40
Nominal Pressure Max (Liquid) (bar)
10
Line Connection 2 Thread Designation
1 1/2
Main Valve Material, Media-contacting
Edelstahl
Pilot Control Material, Media Contact
PA (Polyamid)
EAN
4053913019160
Manufacturer
Burkert
