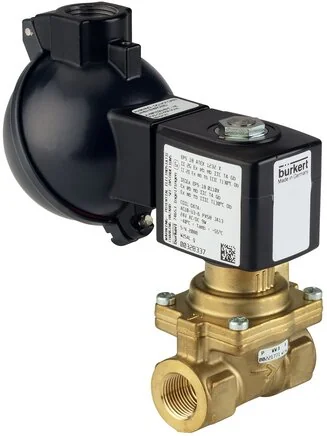

Burkert - 6281-EV-A10,0BBMSGM82-5-024/UC-349656 - 2/2-Way Solenoid Valve, Servo Controlled

SKU: burkert-6281-ev-a10-0bbmsgm82-5-024-uc-349656

Browse all parts
Burkert - 6281-EV-A10,0BBMSGM82-5-024/UC-349656 - 2/2-Way Solenoid Valve, Servo Controlled

€316.06€270.14 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€316.06

Brand
Burkert
CE Mark
Yes
AC Voltage
Yes
DC Voltage
Yes
Coil Size (mm)
32
Rated Power (W)
7
Mode Of Operation
A - in Ruhestellung geschlossen - Druckanschluss 1 (P/NC)
Voltage Frequency
50/60 Hz
Material - Seal Seat
NBR (Nitrilkautschuk)
Line Connection 2 Type
Innengewinde
Nominal Pressure Min (bar)
0,2
Pilot Control Seal Material
NBR (Nitrilkautschuk)
Sealing To Outside Material
NBR (Nitrilkautschuk)
Seat Seal Material Category
Elastomere
Medium Temperature Max (°C)
80
Medium Temperature Min (°C)
-10
Ambient Temperature Max (°C)
55
Ambient Temperature Min (°C)
-30
Line Connection 2 Thread Type
G
Nominal Pressure (DIN EN 1333)
PN 16
Main Valve Nominal Size 1 (inch)
3/8
Voltage Max. / Rated Voltage (V)
24
Voltage Min. / Rated Voltage (V)
24
Main Valve Nominal Size 1 (P) (mm)
10
Nominal Pressure Max (Liquid) (bar)
16
Line Connection 2 Thread Designation
1/4
Main Valve Material, Media-contacting
Messing
EAN
4053913105337
Manufacturer
Burkert
