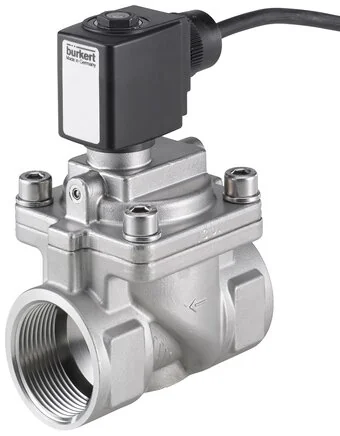

Burkert - 6281-EV-A25,0FFVAGM87-6-024/UC-349747 - 2/2-Way Solenoid Valve, Servo Controlled

SKU: burkert-6281-ev-a25-0ffvagm87-6-024-uc-349747

Browse all parts
Burkert - 6281-EV-A25,0FFVAGM87-6-024/UC-349747 - 2/2-Way Solenoid Valve, Servo Controlled

€824.07€704.33 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€824.07

Brand
Burkert
CE Mark
Yes
AC Voltage
Yes
DC Voltage
Yes
Coil Size (mm)
40
Rated Power (W)
9
Mode Of Operation
A - in Ruhestellung geschlossen - Druckanschluss 1 (P/NC)
Voltage Frequency
50/60 Hz
Material - Seal Seat
FKM (Fluorkautschuk)
Line Connection 2 Type
Innengewinde
Nominal Pressure Min (bar)
0,2
Pilot Control Seal Material
FKM (Fluorkautschuk)
Sealing To Outside Material
FKM (Fluorkautschuk)
Seat Seal Material Category
Elastomere
Medium Temperature Max (°C)
120
Medium Temperature Min (°C)
0
Ambient Temperature Max (°C)
55
Ambient Temperature Min (°C)
-30
Line Connection 2 Thread Type
G
Nominal Pressure (DIN EN 1333)
PN 16
Main Valve Nominal Size 1 (inch)
1
Voltage Max. / Rated Voltage (V)
24
Voltage Min. / Rated Voltage (V)
24
Main Valve Nominal Size 1 (P) (mm)
25
Nominal Pressure Max (Liquid) (bar)
16
Line Connection 2 Thread Designation
1 1/4
Main Valve Material, Media-contacting
Edelstahl
EAN
4053913106082
Manufacturer
Burkert
