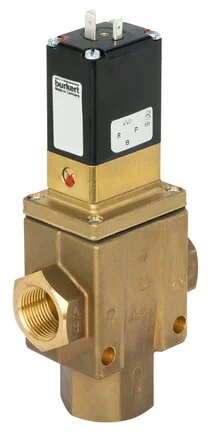

Burkert - 6430-D12,0PBMSGM84-0-230/50-08-357612 - 3/2-Way Solenoid Valve, Servo Piston

SKU: burkert-6430-d12-0pbmsgm84-0-230-50-08-357612

Browse all parts
Burkert - 6430-D12,0PBMSGM84-0-230/50-08-357612 - 3/2-Way Solenoid Valve, Servo Piston

€556.39€475.55 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€556.39

Brand
Burkert
CE Mark
Yes
AC Voltage
Yes
DC Voltage
No
Rated Power (W)
8
Mode Of Operation
D - in Ruhestellung geöffnet - Druckanschluss 1 (P/NO) nach Arbeitsanschluss 2 (B/OUT), Anschluss 3 (R/NC) geschlossen
Valve Seat Material
Messing
Material - Seal Seat
PUR (Polyurethane)
Line Connection 2 Type
Innengewinde
Voltage Frequency (Hz)
50
Nominal Pressure Min (bar)
1
Sealing To Outside Material
NBR (Nitrilkautschuk)
Seat Seal Material Category
Elastomere
Medium Temperature Max (°C)
80
Medium Temperature Min (°C)
0
Ambient Temperature Max (°C)
55
Ambient Temperature Min (°C)
0
Line Connection 2 Thread Type
G
Main Valve Nominal Size 1 (inch)
7/16
Voltage Max. / Rated Voltage (V)
230
Voltage Min. / Rated Voltage (V)
230
Main Valve Nominal Size 1 (P) (mm)
12
Nominal Pressure Max (Liquid) (bar)
16
Line Connection 2 Thread Designation
1/2
Main Valve Material, Media-contacting
Messing
Pilot Control Material, Media Contact
Messing
EAN
4053913030417
Manufacturer
Burkert
