Burnett & Hillman - RIB2616 - Adaptor 1 5/8 JIC 1 BSP
Burnett & Hillman - RIB2616 - Adaptor 1 5/8 JIC 1 BSP
Burnett & Hillman - RIB2616 - Adaptor 1 5/8 JIC 1 BSP
Burnett & Hillman - RIB2616 - Adaptor 1 5/8 JIC 1 BSP
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping on orders over €60

Pay Securely with

Burnett & Hillman - RIB2616 - Adaptor 1 5/8 JIC 1 BSP

Burnett & Hillman - RIB2616 - Adaptor 1 5/8 JIC 1 BSP

€12.18

(Excl. VAT)

Price

(Excl. VAT)

€12.18

Product Description

BSP side has a stop for sealing with bonded seal / USIT seal For pipes with 37° (74°) flanged edge For hoses with UNF / JIC connection in accordance with SAE I 514. Connection thread on the 37° cone side is UNF in accordance with ANSI
Burnett & Hillman

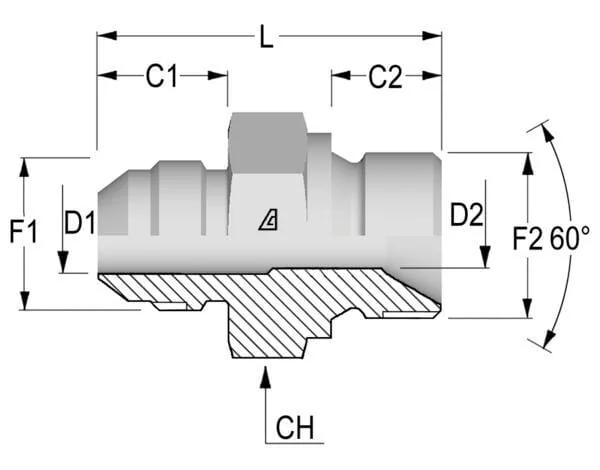

Product Details

Brand
Burnett & Hillman
Unit
Each
Shape
Straight - 2 connection sides
LLength
56 mm
Material
Steel
C2Body size
18 mm
Connection 2, type
Thread
Connection no 1 type
Thread
D1 D2Inside diameter
22,22 mm27,38 mm
Max working pressure
170 BAR
C1Connection no 1 length
24,33 mm
Connection 2, thread type
BSP
Connection no 1 thread type
UNF
CHConnection no 1 wrench size
46.0 mm
F2Connection 2, thread diameter
1-5/8 Inch
Connection 2, type - male/female
Male
F1Connection no 1 thread diameter
1 Inch
Connection no 1 type - male/female
Male
Manufacturer
Burnett & Hillman

Similar items you might like

  • Burnett & Hillman

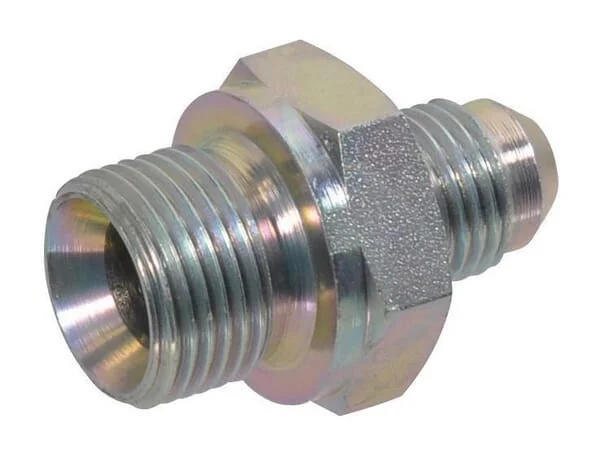

    Burnett & Hillman - RIB2620 - Male Stud 1-5/8JIC x 1-1/4BSP

    Burnett & Hillman

    €12.32

  • Burnett & Hillman

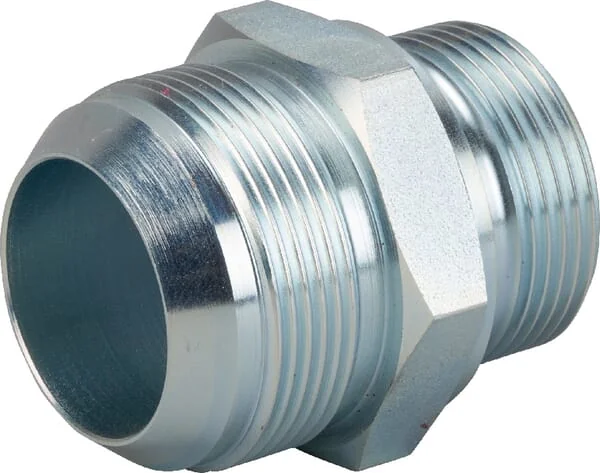

    Burnett & Hillman - RIB3020A - Adaptor 1 7/8JIC-1 1/4BSP - A

    Burnett & Hillman

    €17.09

  • Burnett & Hillman

    Burnett & Hillman - RIB3024 - Male Stud 1-7/8JIC x 1-1/2BSP

    Burnett & Hillman

    €17.09

  • Burnett & Hillman

    Burnett & Hillman - RIM0712 - Male Stud 7/16 JIC x M12

    Burnett & Hillman

    €4.81

  • Burnett & Hillman

    Burnett & Hillman - RIM0914 - Male Stud 9/16 JIC x M14

    Burnett & Hillman

    €4.81

  • Burnett & Hillman

    Burnett & Hillman - RIM0916 - Male Stud 9/16 JIC x M16

    Burnett & Hillman

    €4.49

  • Burnett & Hillman

    Burnett & Hillman - RIM1216 - Male Stud 3/4 JIC x M16

    Burnett & Hillman

    €4.56

  • Burnett & Hillman

    Burnett & Hillman - RIM1218 - Male Stud 3/4 JIC x M18

    Burnett & Hillman

    €4.81

  • Burnett & Hillman

    Burnett & Hillman - RIM1418 - Male Stud 7/8 JIC x M18

    Burnett & Hillman

    €5.05

  • Burnett & Hillman

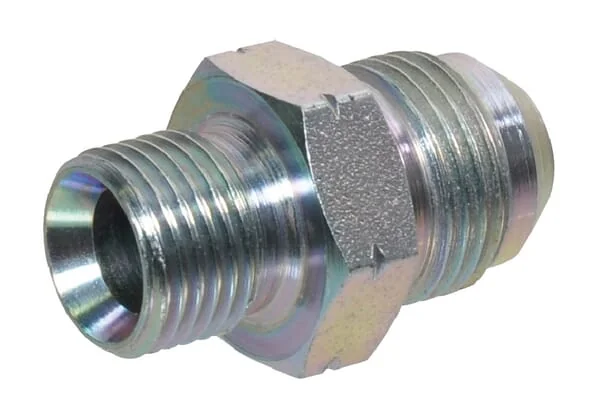

    Burnett & Hillman - RIM1422 - Male Stud 7/8 JIC x M22
