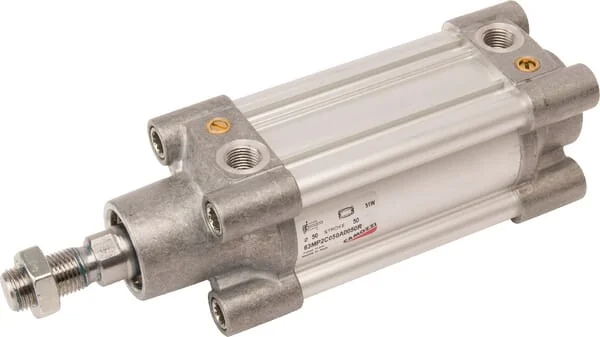

Camozzi - 63MP2C050A0050R - Camozzi Cylinder Series 63

SKU: camozzi-63mp2c050a0050r

Camozzi - 63MP2C050A0050R - Camozzi Cylinder Series 63

€102.68€87.76 (Excl. VAT)

RRP:€147.73
Save €45.04

In stock - ready to ship

Order now for shipping within 2 to 4 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€102.68

Brand
Camozzi
Part Numbers
63MP2C050A0050R
Type
Double acting
Unit
Each
Width
65 mm
Stroke
50 mm
Min. length
193 mm
Damping type
Pneumatic - both sides - adjustable
Rod diameter
20 mm
Bore diameter
50 mm
Product details
In accordance with ISO 15552 standard (formerly: DIN/ISO 6431 - VDMA 24562). Magnet on piston for positioning. Minimum and maximum stroke length 10 ÷ 2500 mm. Temperature range 0°C ÷ 80°C. Compressed air
according to ISO 8573-1-2010 standard. Maximum speed 1 m/sec (unloaded). Working pressure maximum 10 bar.

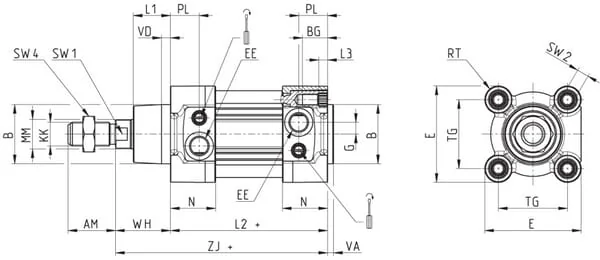

Rod wrench size
17.0 mm
Long description
Pneumatic cylinder series 63 has a high performance and versatility. Adjustable cushioning gives optimal regulation whilst reducing the noise caused by the impact of the piston and the end block.
Outside diameter
20 mm
Sealing material
Nitrile rubber [NBR]
Cylinder nut wrench size
24.0 mm
Cylinder head flange width
8 mm30,5 mm
Cylinder head flange diameter
40 mm
Housing front mounting holes length
16 mm
Cylinder length without rod and head
156 mm
Housing side mounting holes distance
46,5 mm
Mounting thread type - rod connection
Metric
Mounting thread pitch - rod connection
1.50 mm
Housing side mounting holes thread type
G Metric
Mounting thread length - rod connection
32 mm
Mounting thread diameter - rod connection
M16
Housing side mounting holes thread diameter
M8
Housing front mounting holes thread diameter
M8
Manufacturer
Camozzi
EAN
8051707303675

In accordance with ISO 15552 standard (formerly: DIN/ISO 6431 - VDMA 24562). Magnet on piston for positioning. Minimum and maximum stroke length 10 ÷ 2500 mm. Temperature range 0°C ÷ 80°C. Compressed air | according to ISO 8573-1-2010 standard. Maximum speed 1 m/sec (unloaded). Working pressure maximum 10 bar.
Camozzi
