Electrical, Lighting & Batteries

Position Sensors

Camozzi - CSV220 - Camozzi Sensor

Camozzi - CSV220 - Camozzi Sensor

Number of products

In stock - ready to ship

Order now for delivery between 14 May and 18 May

Free shipping on orders over €60

Pay Securely with

Camozzi - CSV220 - Camozzi Sensor

Camozzi - CSV220 - Camozzi Sensor

€33.03

(Excl. VAT)

Price

(Excl. VAT)

€33.03

Number of products

Product Description

The Camozzi CSV220 is a genuine magnetic proximity sensor designed for reliable position detection on pneumatic cylinders with bore sizes from Ø 32 mm to 125 mm. Featuring a robust reed switch operating principle, this sensor supports a wide operating voltage range of 5 to 240 V AC/DC and offers IP67 protection, ensuring durability in demanding industrial environments. It includes an LED indicator for operational status and comes with a 2.5-meter cable for flexible installation.

Camozzi

Product Details

Brand

Width mm

10

Height mm

6

Length mm

28

Weight kg

0.02

Led indicator

Yes

Max current ma

100

Max power w dc

10

Cable length mm

2500

Max power va ac

10

Protection class

IP67

Operating principle

Reed switch

Electrical connection

2 wires

Operating temperature c

-20 to 75

Operating voltage v ac dc

5-240

Mounting cylinder diameter mm

32-125

Manufacturer

camozzi

Similar items you might like

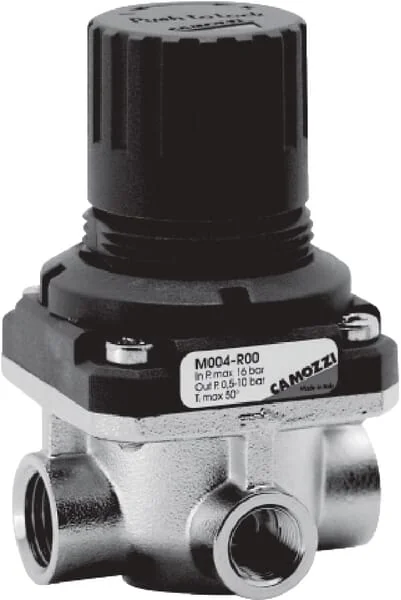

Camozzi - M004R00 - Camozzi Pressure Regulator
