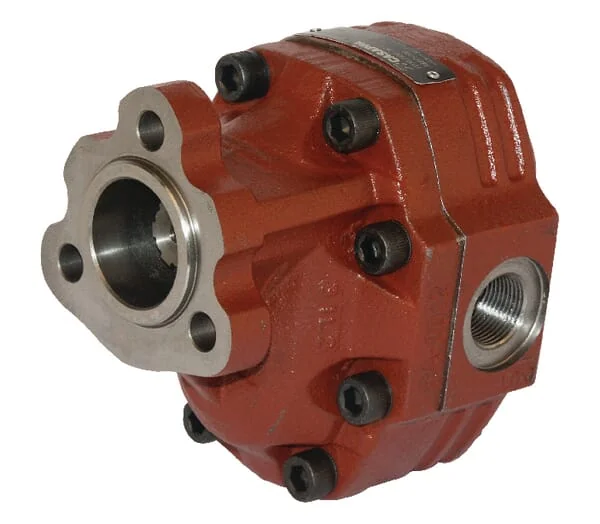

Casappa - FP3061D - Pump FP30.61D0-19T1-LGF/GF-N

Casappa - FP3061D - Pump FP30.61D0-19T1-LGF/GF-N

Casappa - FP3061D - Pump FP30.61D0-19T1-LGF/GF-N

Casappa - FP3061D - Pump FP30.61D0-19T1-LGF/GF-N

Casappa - FP3061D - Pump FP30.61D0-19T1-LGF/GF-N

Casappa - FP3061D - Pump FP30.61D0-19T1-LGF/GF-N

Number of products

In stock - ready to ship

Order now for delivery between 25 May and 28 May

Free shipping

Pay Securely with

Casappa - FP3061D - Pump FP30.61D0-19T1-LGF/GF-N

Casappa - FP3061D - Pump FP30.61D0-19T1-LGF/GF-N

€534.10

(Excl. VAT)

Price

(Excl. VAT)

€534.10

Number of products

Product Description

High performance even at low speeds Direct mounting on PTO shaft possible Various port positions Low noise Customer-specific design possible Adaptor for 1 3/8" 6-piece PTO profile: Support bearing SMLF or SFLF (plus hitch bushing) Adaptor for 9-piece ZF profile: Support bearing SR9 (plus hitch bushing) In combination with these support bearings, a torque of 300 Nm must not be exceeded PTO shaft cantilever pump Drives with ZF profile

Casappa

Casappa specializes in hydraulic systems and components for agricultural machinery, including pumps, motors, and valves. The brand is known for its high-performance solutions that enhance the efficiency of tractors and farming equipment. Its products are widely used in irrigation systems, harvesters, and other heavy-duty agricultural applications. Shop more than 566 genuine Casappa spare parts.

Product Details

Brand

Pros

Wide range of applications Compact design

Unit

Each

Shaft type

Splined

Flange code

T1

Displacement

61,26 cm³/rev

Sealing type

Standard

Port position

Side

AHousing length

178,5 mm

Housing material

Cast iron

Max pressure peak

250 BAR

Mounting diameter

52 mm

Max rotation speed

2000 r/min

Main port thread type

G

Pressure port thread type

G

CMain port thread diameter

1 Inch

Prefered rotation direction

Clockwise (CW)

Pressure port thread diameter

1 Inch

Flange and back cover material

Cast iron

Max. continous working pressure

220 BAR

Max intermittend working pressure

240 BAR

BConnection port to flange distance

116,5 mm

Manufacturer

Casappa
