Casappa - PLM2020R82E2 - Hydraulic Motor 19.5cc
Casappa - PLM2020R82E2 - Hydraulic Motor 19.5cc
Casappa - PLM2020R82E2 - Hydraulic Motor 19.5cc
Casappa - PLM2020R82E2 - Hydraulic Motor 19.5cc
Casappa - PLM2020R82E2 - Hydraulic Motor 19.5cc
Casappa - PLM2020R82E2 - Hydraulic Motor 19.5cc

In stock - ready to ship

Ships within 85 hours
Free shipping

Pay Securely with

Casappa - PLM2020R82E2 - Hydraulic Motor 19.5cc

Casappa - PLM2020R82E2 - Hydraulic Motor 19.5cc

€192.13

(Excl. VAT)

Price

(Excl. VAT)

€192.13

Product Description

The Casappa PLM2020R82E2 is a genuine hydraulic motor designed for reliable performance in various machinery applications. This motor features a fixed displacement of 19.5 cubic centimeters per revolution and operates with right-hand rotation. It is equipped with SAE A 2-bolt mounting for secure installation and a 1-inch 6-spline shaft, ensuring compatibility with standard hydraulic systems.
Casappa
Casappa specializes in hydraulic systems and components for agricultural machinery, including pumps, motors, and valves. The brand is known for its high-performance solutions that enhance the efficiency of tractors and farming equipment. Its products are widely used in irrigation systems, harvesters, and other heavy-duty agricultural applications. Shop more than 53 genuine Casappa spare parts.

Product Details

Brand
Casappa
Part Numbers
plm2020r82e2
Unit
Each
Details
Various connection options
Benefits
Wide range of applications Can be used in challenging environmental conditions
Properties
Electrohydraulic ventilator drive Customer-specific design possible
Shaft type
Tapered
Flange code
E2
Displacement
21,14 cm³/rev
Port position
End
Housing length
117,5 mm
Pump group code
3
Flange type norm
European
Housing material
Aluminium
Application range
Mobile applications Industrial applications
Max pressure peak
204 BAR
Shaft thread type
Metric fine
Max rotation speed
3000 r/min
Min rotation speed
500 r/min
Shaft thread pitch
1.50 mm
Main port size code
2G08
Shaft cone size code
1:8
Shaft thread diameter
M12
Pressure port size code
1G08
Number of mounting holes
4
Flange and back cover material
Steel
Max. continous working pressure
170 BAR
Max intermittend working pressure
187 BAR
DSuction port bolts circle diameter
30 mm
EPressure port bolts circle diameter
40 mm
Manufacturer
Casappa

Similar items you might like

  • Casappa

    Casappa - PLM2063S054B2LGDGDN - Hydraulic Motor

Casappa

€252.58

  • Casappa

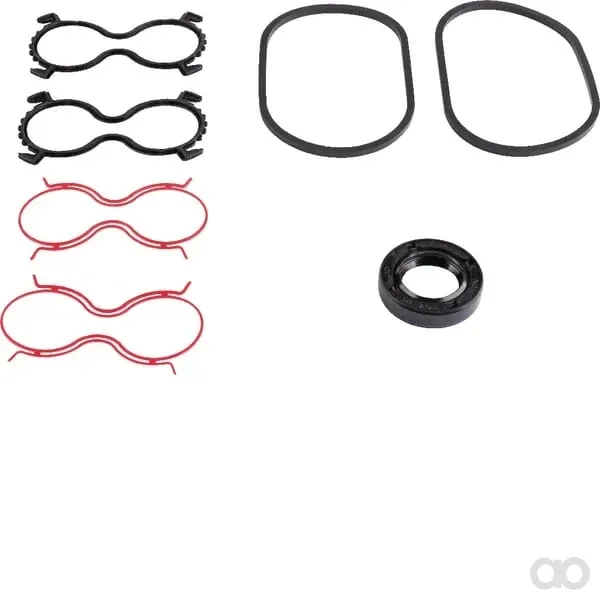

    Casappa - PLM920AFD - Seal Kit Polaris 2

    Casappa

    €14.10

  • Casappa

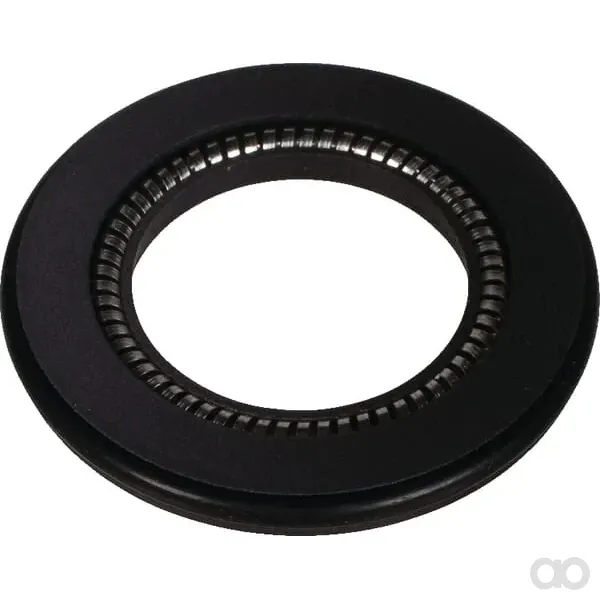

    Casappa - PLM92020 - Retaining Ring 18 x 30 HD Hydromotor

    Casappa

    €38.10

  • Casappa

    Casappa - PLM930AFD - Seal Kit Polaris 30 R

    Casappa

    €24.94

  • Casappa

    Casappa - PLP102D081E1 - Hydraulic Gear Pump 2 cc/rev Used

    Casappa

    €124.46

  • Casappa

    Casappa - PLM3022R83E3 - Gear Motor PLM30.22R0-83E3

    Casappa

    €425.09

  • Casappa

    Casappa - PLP2011D082E2 - Gear Pump Polaris 2

    Casappa

    €161.74

  • Casappa

    Casappa - PLP3022S083E3 - Gear Pump 22cc / 13T

    Casappa

    €385.55

  • Casappa

    Casappa - PLP3043S083E3 - Gear Pump 43cc / 15T

    Casappa

    €393.23

  • Casappa

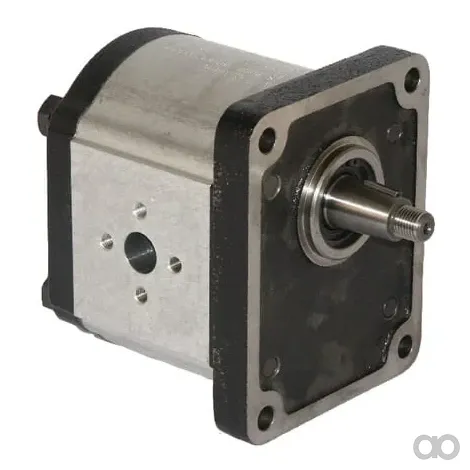

    Casappa - PLP3061D083E3 - Pump PLP30.61D0-83E3-LED/EB-N
