Casappa - PLP106D081E1 - Pump PLP10.6,3 D0-81E1-LBB/BA

OEM Supplier

SKU: casappa-plp106d081e1

Casappa - PLP106D081E1 - Pump PLP10.6,3 D0-81E1-LBB/BA

€135.51

(excl. VAT)

In stock - ready to ship

Ships within 48 hours

Shipping fee: €6.00 excl. VAT

Pay Securely with

Price

(Excl. VAT)

€135.51

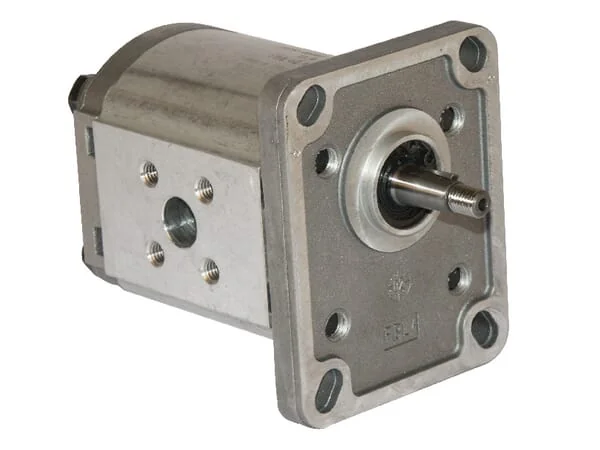

The Casappa PLP106D081E1 is a high-quality hydraulic gear pump from the PLP10.6 series, designed for reliable performance in various agricultural and industrial machinery. This genuine Casappa pump features a displacement of 6.3 cm³ per revolution and operates with a right-hand rotation. It is built to Casappa's stringent specifications, ensuring durability and efficient hydraulic power delivery.
Casappa
Casappa specializes in hydraulic systems and components for agricultural machinery, including pumps, motors, and valves. The brand is known for its high-performance solutions that enhance the efficiency of tractors and farming equipment. Its products are widely used in irrigation systems, harvesters, and other heavy-duty agricultural applications. Shop more than 53 genuine Casappa spare parts.

Brand
Casappa
Part Numbers
plp106d081e1
Unit
Each
Details
Various connection options Outer housing pivoted
Benefits
Wide range of applications Can be used under tough environmental conditions
Properties
Consists of 3 parts Electrohydraulic ventilator drive Customer-specific design possible
Shaft type
Tapered
Flange code
E1
Displacement
6,67 cm³/rev
Sealing type
Standard
Port position
Side
Housing length
83 mm
Flange type norm
European
Housing material
Aluminium
Long description
Polaris group 1
Application range
Mobile applications Industrial applications
Max pressure peak
260 BAR
Mounting diameter
25,4 mm
Max rotation speed
3500 r/min
Shaft cone size code
1:8
Number of mounting holes
4

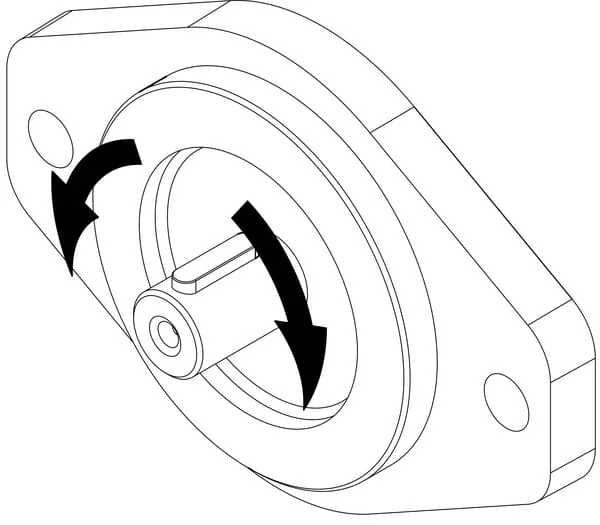

Prefered rotation direction
Clockwise (CW)
Flange and back cover material
Aluminium
Max. continous working pressure
230 BAR
Max intermittend working pressure
250 BAR
BConnection port to flange distance
40 mm
DSuction port bolts circle diameter
30 mm
EPressure port bolts circle diameter
30 mm
Manufacturer
Casappa
