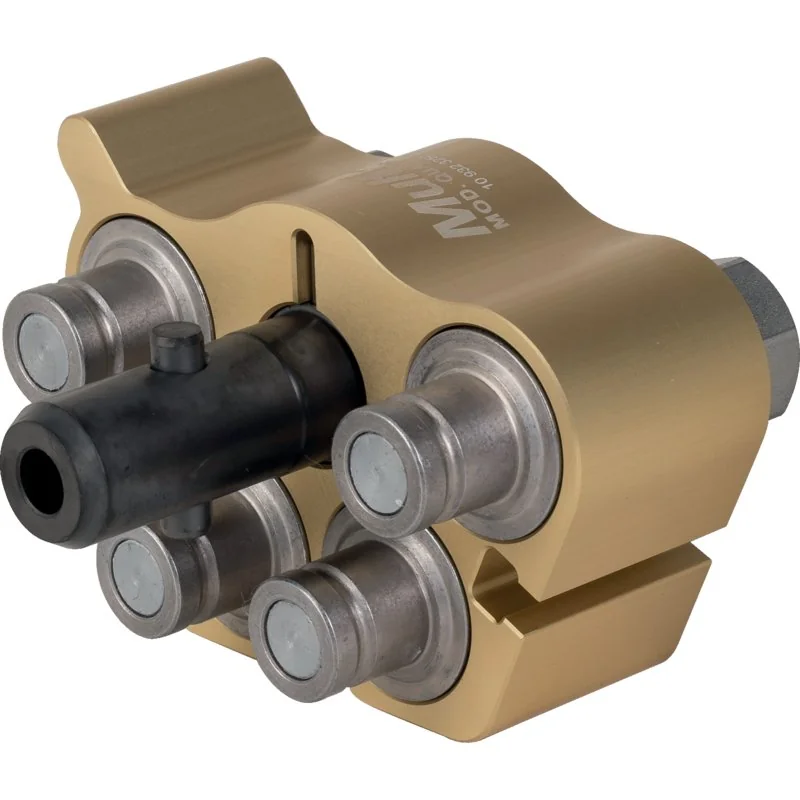

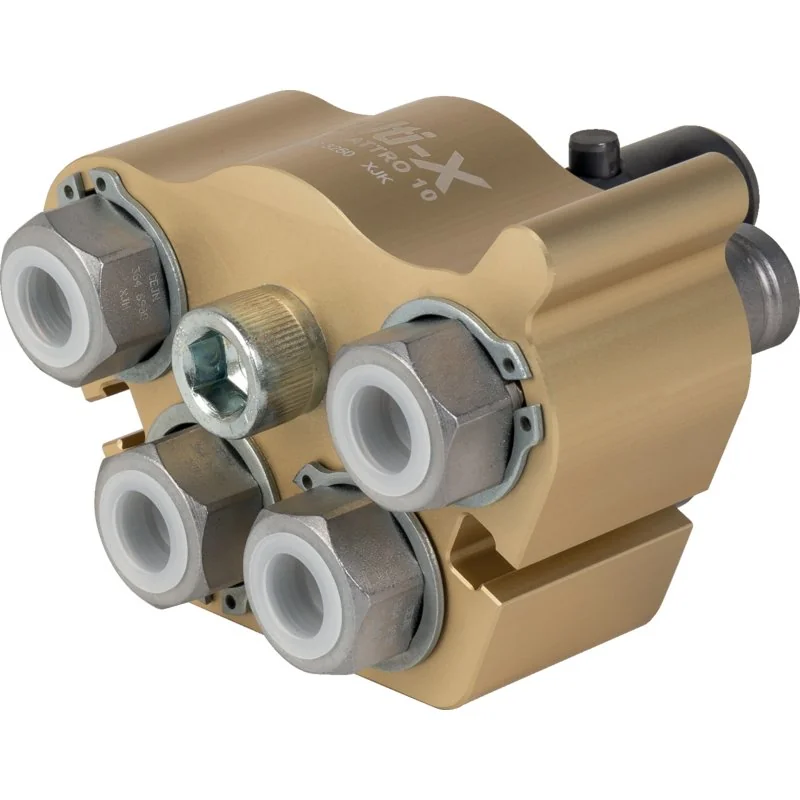

Cejn - 109323250 - MultiX Plug

The dust cap is included in the scope of delivery. MultiX GII Advantages: connectable under residual pressure self-aligning hose connections compact design high vibration resistance high flow The MultiX Generation 2 multi-coupling series is a confusion-proof multi-coupling. All models are equipped with drip-free flat-face couplings according to ISO 16028. With DUO couplings, up to 350 bar working pressure can be applied to both connections. With QUATTRO couplings, up to 350 bar working pressure can be applied to two connections if the remaining two connections are used as return lines with a maximum pressure of 5 bar. The nipples with integrated pressure eliminators enable easy connection even with high residual pressure. For optimal flexibility, both the coupling and nipple sides can be used as a fixed part. In addition, both sides can be equipped with electrical connectors. Connectable: 1. Residual pressures of up to 350bar on the plug side and pressureless on the coupling side 2. Residual pressures of up to 250bar on the plug side and 10 bar on the coupling side 3. Residual pressures of up to 250bar on the coupling side and pressureless on the plug side
