Cohidrex - LF3687 - Fleetguard Filter
Cohidrex - LF3687 - Fleetguard Filter
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping on orders over €60

Pay Securely with

Cohidrex - LF3687 - Fleetguard Filter

Cohidrex - LF3687 - Fleetguard Filter

€58.99

(Excl. VAT)

Price

(Excl. VAT)

€58.99

Product Description

The Fleetguard LF3687 is a high-quality spin-on full-flow lube filter designed to provide superior engine protection by efficiently removing contaminants from engine oil. With an outer diameter of 93.73 mm and an overall height of 174.75 mm, this filter features a 1-16 UN-2B thread size. It includes an anti-drainback valve and a bypass valve set at 172.37 kPa (25 PSI) to ensure consistent oil flow and filtration, making it suitable for various agricultural and industrial machinery applications.
Cohidrex
Cohidrex specializes in hydraulic components and systems for agricultural machinery. The brand offers high-pressure hoses, couplings, and valves designed for tractors and heavy-duty equipment. Its products ensure reliable performance in demanding farming and forestry applications. Shop more than 1,450 genuine Cohidrex spare parts.

Product Details

Brand
cohidrex
Part Numbers
lf3687
Equivalent OEM Part Numbers

Cummins

3908616

New Holland

86546614

John Deere

RE504836

Case Ih

86546614

Massey Ferguson

3609420M1

Perkins

2654407

Volvo

20998807

Ford

86546614

Daf

1399491

Scania

1399491

Caterpillar

1R0739

Komatsu

6002111340

Jcb

02100073

Liebherr

7361730

Deutz Fahr

01182710

Fendt

F916200020010

Claas

0001804240

Kubota

HH15032430

Yanmar

12915035150

Isuzu

8973099270

Mitsubishi

ME034605

Hyundai

11E170110

Doosan

65055105020

Terex

15270113

Hitachi

4206004

Sany

B222100000010
Outer Diameter (mm)
93.73
Height (mm)
174.75
Thread Size
1-16 UN-2B
Bypass Valve Setting (kPa)
172.37
Anti Drainback Valve
True
Weight (kg)
0.6
Manufacturer
cohidrex

Similar items you might like

  • Cohidrex

    Cohidrex - LF3610 - Fleetguard Filter

Cohidrex

€33.07

  • Cohidrex

    Cohidrex - LF3624 - Fleetguard Filter

    Cohidrex

    €23.12

  • Cohidrex

    Cohidrex - LF3737 - Fleetguard Filter

    Cohidrex

    €104.44

  • Cohidrex

    Cohidrex - LF3484 - Fleetguard Filter LF-3484

    Cohidrex

    €55.02

  • Cohidrex

    Cohidrex - LF3733 - Fleetguard Filter

    Cohidrex

    €77.08

  • Cohidrex

    Cohidrex - LF3730 - Fleetguard Filter

    Cohidrex

    €52.60

  • Cohidrex

    Cohidrex - LF3867 - Fleetguard Filter

    Cohidrex

    €43.91

  • Cohidrex

    Cohidrex - LF509N - Fleetguard Filter

    Cohidrex

    €39.08

  • Cohidrex

    Cohidrex - LF3959 - Fleetguard Filter

    Cohidrex

    €54.03

  • Cohidrex

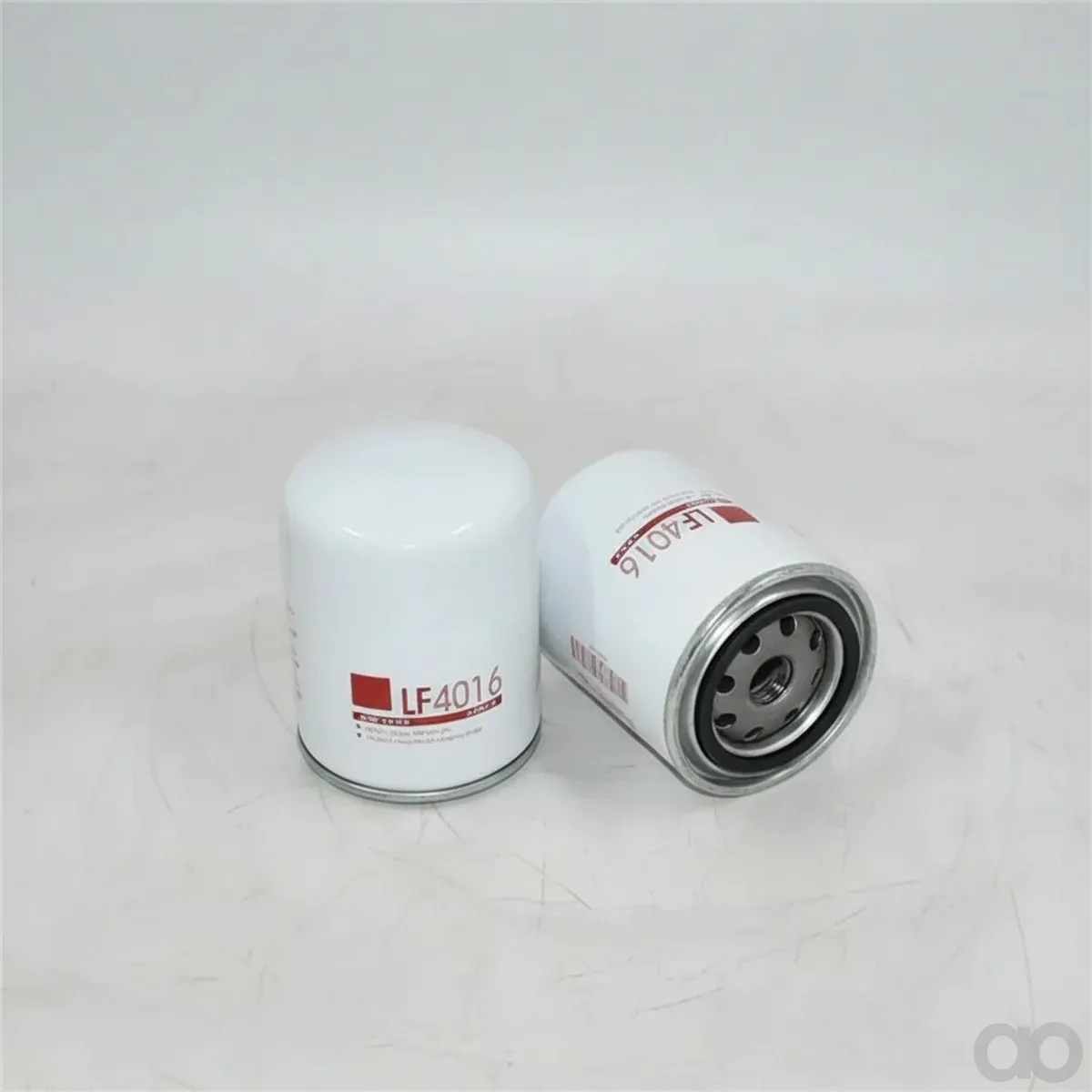

    Cohidrex - LF4016 - Fleetguard Filter
