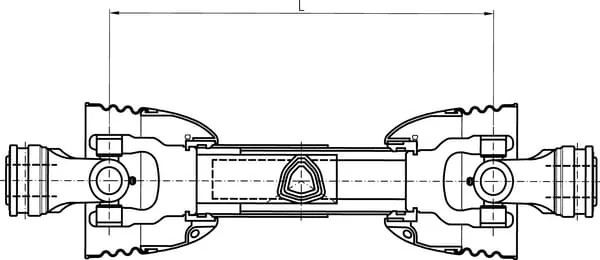

Comer - T200560ENC12C12 - PTO Shaft T20 l: 560mm, Comer
Comer - T200560ENC12C12 - PTO Shaft T20 l: 560mm, Comer
Comer - T200560ENC12C12 - PTO Shaft T20 l: 560mm, Comer
Comer - T200560ENC12C12 - PTO Shaft T20 l: 560mm, Comer

In stock - ready to ship

Order now for delivery between 15 May and 19 May
Free shipping

Pay Securely with

Comer - T200560ENC12C12 - PTO Shaft T20 l: 560mm, Comer

Comer - T200560ENC12C12 - PTO Shaft T20 l: 560mm, Comer

€163.60

(Excl. VAT)

Price

(Excl. VAT)

€163.60

Comer
Comer produces agricultural gearboxes and power transmission systems. The brand supplies robust and efficient driveline components for tractors and implements. Its products are designed for high torque and long service life in farming applications. Shop more than 224 genuine Comer spare parts.

Product Details

Brand
Comer
Unit
Each
LLength
560 mm
Size code
T20
Properties
Lubrication interval: 8 hours CE marking available
Power 540 rpm
15 kW
Power 1000 rpm
23 kW
Technical info
Refer to the Comer instruction manual Max. dynamic capacity 540 rpm - 15 kW - 270 Nm Max. dynamic capacity 1000 rpm - 23 kW - 220 Nm Values at working angle 5° and service life 1000 hours
Application range
Hay rake Tedders Crop sprayers
Max dynamic torque
450 N·m
Profile tube shape
Triangular
Attachment machine side
Quick disconnect yoke
Attachment tractor side
Quick disconnect yoke
Inner tube wall thickness
4 mm
Outer tube wall thickness
3,2 mm
Locking type by machine side
Collar lock
Locking type by tractor side
Collar lock
Inner tube large outside diameter
29 mm
Outer tube large outside diameter
36 mm
Cross joint length by machine side
61,3 mm
Cross joint length by tractor side
61,3 mm
Cross joint bush diameter by machine side
23,8 mm
Cross joint bush diameter by tractor side
23,8 mm
Connection outside diameter by machine side
1-3/8 Inch
Connection outside diameter by tractor side
1-3/8 Inch
Connection number of splines/grooves by machine side
6
Connection number of splines/grooves by tractor side
6
Manufacturer
Comer
