Home
Cab, Body & Steering
Axles and Steering
Other Axles and Steering Parts
DANA Spicer - 000051630 - Kingpin Seal Fendt
DANA Spicer - 000051630 - Kingpin Seal Fendt
DANA Spicer - 000051630 - Kingpin Seal Fendt
DANA Spicer - 000051630 - Kingpin Seal Fendt
DANA Spicer - 000051630 - Kingpin Seal Fendt
DANA Spicer - 000051630 - Kingpin Seal Fendt

In stock - ready to ship

Order now for delivery between 16 July and 20 July
Free shipping on orders over €60

Pay Securely with

DANA Spicer - 000051630 - Kingpin Seal Fendt

DANA Spicer - 000051630 - Kingpin Seal Fendt

€13.62

(Excl. VAT)

Price

(Excl. VAT)

€13.62

Product Description

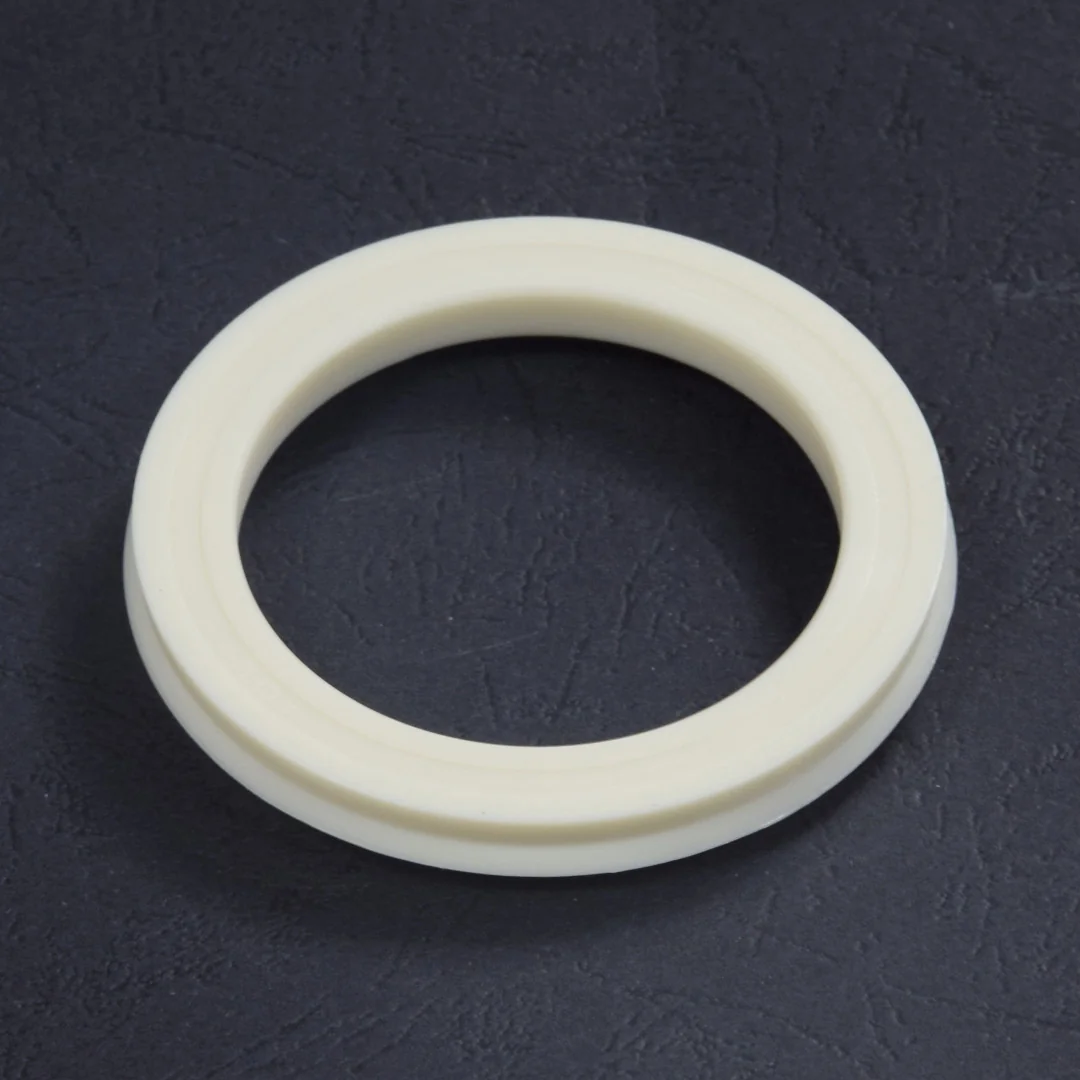

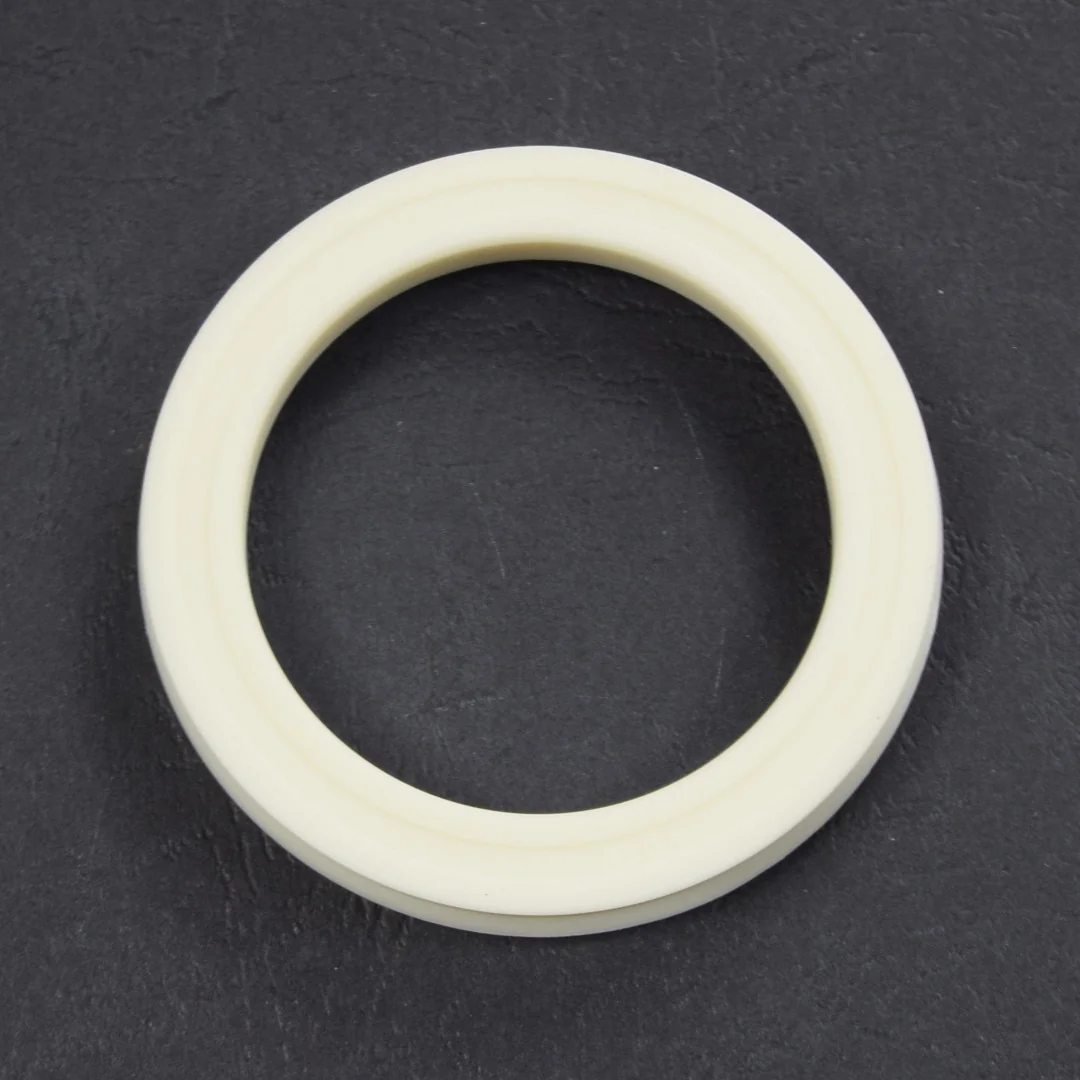

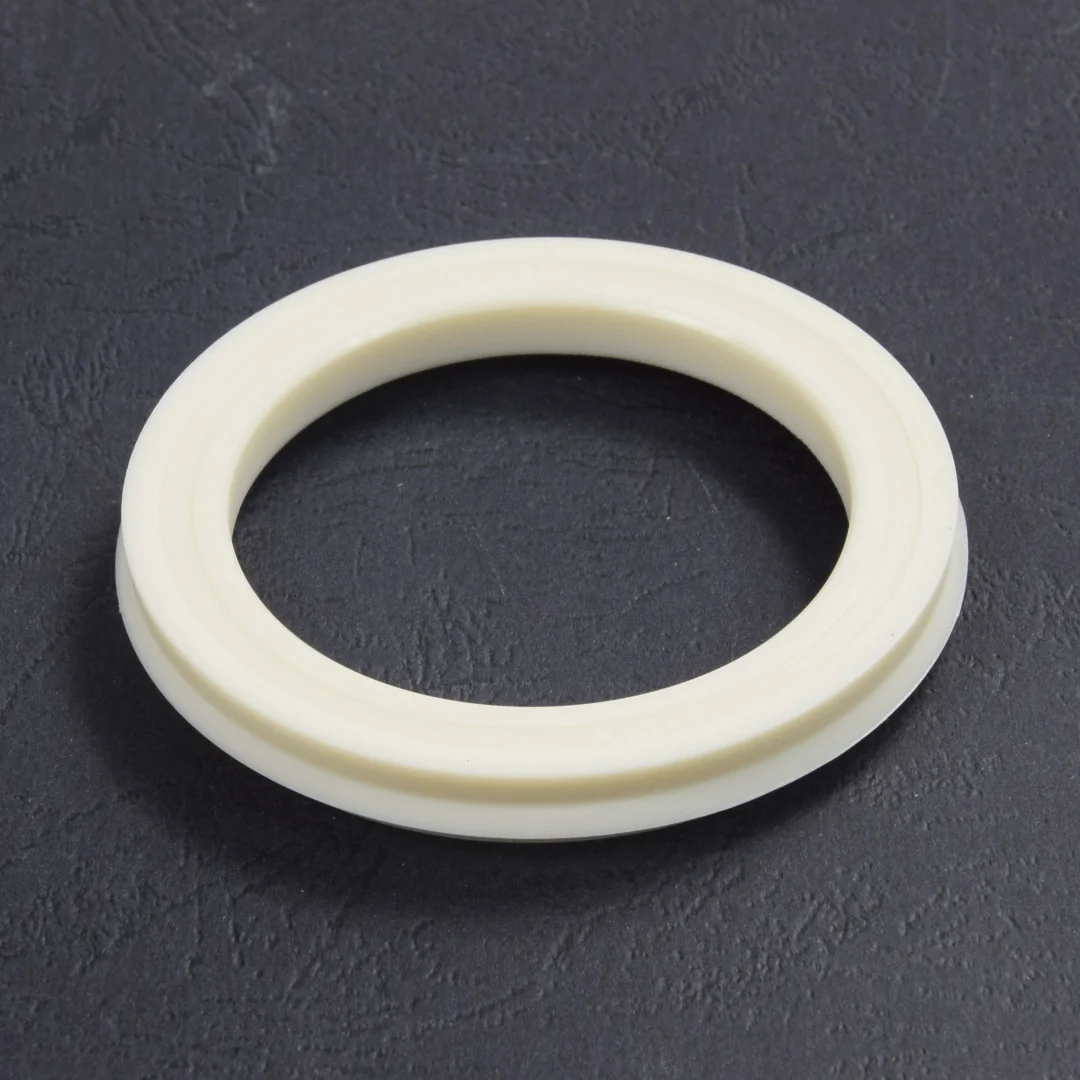

This steering knuckle pin seal is a replacement gasket that fits between the kingpin and the steering knuckle housing. It prevents lubricant leakage and blocks dirt and moisture from entering the kingpin bearing area. The seal sits directly on the steering knuckle pin, where it maintains a closed barrier around the rotating joint. A worn seal allows grease loss and contamination ingress, which accelerates kingpin and bushing wear and produces steering play. Manufactured by Dana Spicer, this seal is formed to the original profile so it seats correctly in the housing bore without additional shimming or adapters. On installation, clean the bore surface and press the seal evenly to avoid distorting the sealing lip.
Dana Spicer
Dana Spicer is a globally recognized brand in the driveline and motion technology sector, with a history rooted in innovation and engineering excellence. While specific founding details often trace back to the early 20th century with Clarence W. Spicer's universal joint invention, the brand is now a key part of Dana Incorporated, a major global supplier of drivetrain, e-propulsion, and thermal-management technologies. Dana's headquarters are located in Maumee, Ohio, USA, overseeing a vast international operation. The brand is renowned for its comprehensive range of driveline components, including axles, driveshafts, transmissions, and genuine service parts. Dana Spicer products are engineered for a wide array of applications, from light vehicles to heavy-duty off-highway equipment. Its axle assemblies and universal joints are particularly well-known for their robust design and reliability in demanding environments, serving sectors like agriculture, construction, and mining. At Partao, you will find a selection of Dana Spicer components, including Axle Assemblies, Axle Seals, Ball Bearings, Bolts & Fasteners, and Brackets & Supports. These parts are crucial for the maintenance and repair of various agricultural and heavy machinery. Over 998 genuine Dana Spicer spare parts are available at Partao. Equipment operators and maintenance professionals worldwide rely on Dana Spicer for its reputation for durable and high-performance driveline solutions. The brand's extensive global presence ensures widespread availability of parts and technical support, making it a preferred choice for ensuring the longevity and operational efficiency of agricultural machinery and other heavy equipment.

Product Details

Brand
DANA Spicer
Fits

Fendt

711 Vario712 Vario714 Vario716 Vario815 Vario817 Vario818 Vario916 Vario918 Vario920 Vario922 Vario924 Vario926 Vario927 Vario930 VarioFavorit 611Favorit 612Favorit 614Favorit 615Favorit 711 VarioFavorit 712 VarioFavorit 714 VarioFavorit 716 VarioFavorit 816 LSFavorit 818 LSFavorit 822 LSFavorit 824 LSFavorit 916 VarioFavorit 918 VarioFavorit 920 VarioFavorit 924 VarioFavorit 926 Vario
Height
9 mm
Location
Kingpin
Application
Tractors and vehicles
Product Type
Gasket
Inner Diameter
57 mm
Outer Diameter
76 mm
Manufacturer
DANA Spicer

Similar items you might like

  • Dana Spicer

    Dana Spicer - 000051684 - Seal

    Dana Spicer

    €15.18

  • Dana Spicer

    Dana Spicer - 000051692 - Ring, Pu

    Dana Spicer

    €9.17

  • Dana Spicer

    Dana Spicer - 000051714 - Seal

    Dana Spicer

    €20.28

  • Dana Spicer

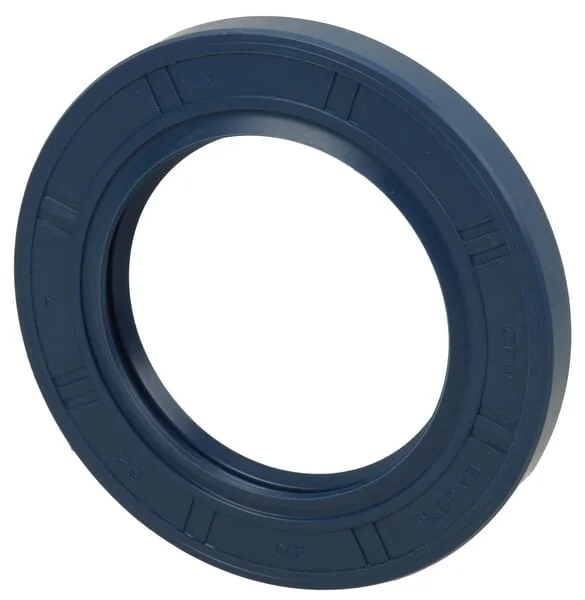

    Dana Spicer - 000051718 - Gasket

    Dana Spicer

    €12.50

  • Dana Spicer

    Dana Spicer - 000051723 - Seal

    Dana Spicer

    €17.42

  • Dana Spicer

    Dana Spicer - 000051726 - Seal Ring

    Dana Spicer

    €18.95

  • Dana Spicer

    Dana Spicer - 000051754 - Support Ring

    Dana Spicer

    €18.08

  • Dana Spicer

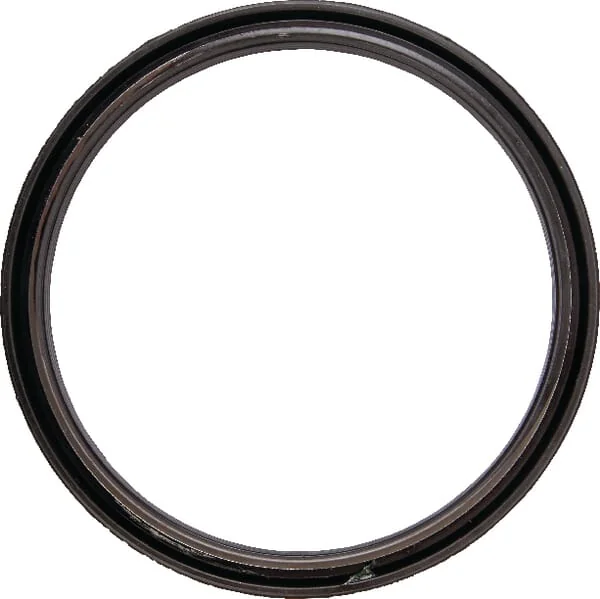

    Dana Spicer - 000051771 - Seal

    Dana Spicer

    €115.32

  • Dana Spicer

    Dana Spicer - 000051784 - Ring

    Dana Spicer

    €22.72

  • Dana Spicer

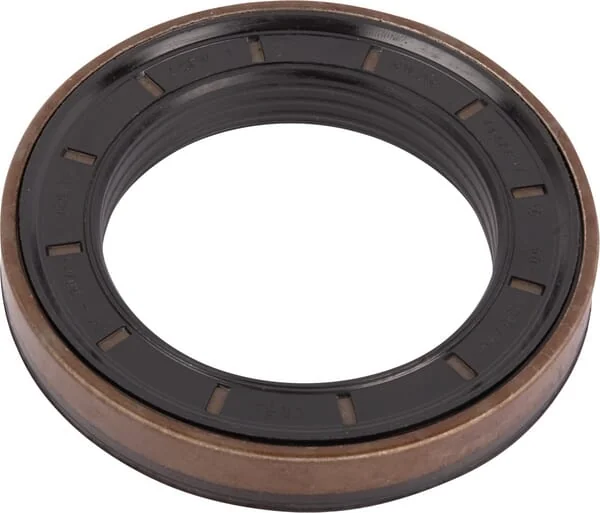

    Dana Spicer - 000051815 - Oil Seal
