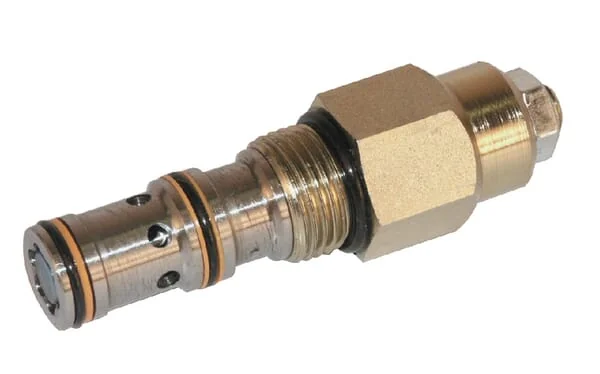

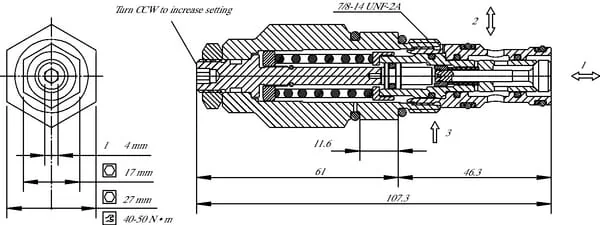

Danfoss - CB10AV2B1E100B00 - Counterbalance Cartridge CB10AV2B1
Danfoss - CB10AV2B1E100B00 - Counterbalance Cartridge CB10AV2B1
Danfoss - CB10AV2B1E100B00 - Counterbalance Cartridge CB10AV2B1
Danfoss - CB10AV2B1E100B00 - Counterbalance Cartridge CB10AV2B1
Danfoss - CB10AV2B1E100B00 - Counterbalance Cartridge CB10AV2B1
Danfoss - CB10AV2B1E100B00 - Counterbalance Cartridge CB10AV2B1

In stock - ready to ship

Order now for delivery between 16 May and 20 May
Free shipping

Pay Securely with

Danfoss - CB10AV2B1E100B00 - Counterbalance Cartridge CB10AV2B1

Danfoss - CB10AV2B1E100B00 - Counterbalance Cartridge CB10AV2B1

€114.76

(Excl. VAT)

Price

(Excl. VAT)

€114.76

Product Description

Equalising valves or brake valves provide controlled movement, stopping and holding of loads. They prevent the lag of movements (negative load) and protect the installation against external forces (anti-shock). Overcentre valves provide controlled initiation and stopping of a movement, while holding the load at rest. When mounted directly on the cylinder or motor, they also function as hose breakage protection. Show more
Danfoss
Danfoss develops advanced hydraulic and electronic control systems for agricultural machinery, including tractors and harvesters. The brand is known for its energy-efficient solutions, such as pumps, valves, and power units. Its technologies optimize precision and productivity in modern farming operations. Shop more than 1,238 genuine Danfoss spare parts.

Product Details

Brand
Danfoss
Note
Stable quiet and precise function. The value set must always be 30% higher than the maximum load pressure
Pros
Provides gentle, controlled movements Load-holding valve Hose breakage protection Protects against pressure peaks caused by external forces Prevents lag caused by negative loads Protects consumer against cavitation
Seal
Order no.: with code CP 9-4.10.007
Size
SDC 10-3S Inch
Unit
Each
Includes
Cartridge Excl. housing
Flow rate
60 l/min
Pilot ratio
1:4,5
Designed for
As a safety component when, in single or double action systems, cylinders or motors must remain fixed in any side position. External forces may not affect the position.
Pressure max.
350 BAR
Pressure range
75 - 240 BAR
Opening pressure spring (bar)
1
Manufacturer
Danfoss
