Danfoss - CB10HV3A1E2003 - Counter Balance Double CB10HV3A1E2 3/8" 80-230

OEM Supplier

SKU: danfoss-cb10hv3a1e2003

Danfoss - CB10HV3A1E2003 - Counter Balance Double CB10HV3A1E2 3/8" 80-230

€238.48€203.83 (Excl. VAT)

RRP:€410.81
Save €172.33

In stock - ready to ship

Order now for shipping within 2 to 4 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€238.48

Brand
Danfoss
Type
Double
Unit
Each
Benefits
Ensures gentle, controlled movements and precise positioning of pulled and pushed loads
Material
Aluminium
Properties
Function as hose breakage protection Protection against pressure peaks due to application of extreme force Protection against cavitation for the user Opening pressure depends on pressure setting, load pressure and steering pressure ratio
Consists of
2 cartridges Housing
Pilot ratio
3:1.0
ATotal length
100 mm
BTotal height
80 mm
Max flow rate
40 l/min
Technical info
HV: the hydraulically released spring chambers A, B and T must be connected to each other in the neutral position AV: the vented spring chambers A and B may be sealed in the neutral position The pressure setting must be approx. 30% higher than the maximum load pressure A high return pressure can have a negative impact on the function of the valve Double-acting, cartridge construction Install in line as near to the consumer as possible Free flow from V to C
Sealing material
Buna-N
Application range
High pressure and moderate volume flow Telescopic loaders Forklifts Front loaders Crane applications
Max working pressure
250 BAR
Number of connections
2
Connections thread type
BSP
Connections thread diameter
3/8 Inch
Manufacturer
Danfoss

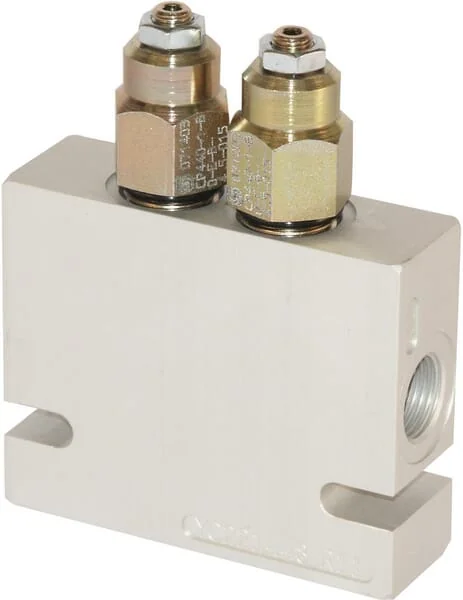

The Danfoss double counterbalance valve, part number CB10HV3A1E2003, is made by a company that also supplies parts to machine manufacturers. It consists of two cartridge units in an aluminium housing.
