Danfoss - CP7011B0A - Pressure Compensator Cartridge
Danfoss - CP7011B0A - Pressure Compensator Cartridge
Danfoss - CP7011B0A - Pressure Compensator Cartridge
Danfoss - CP7011B0A - Pressure Compensator Cartridge
Danfoss - CP7011B0A - Pressure Compensator Cartridge
Danfoss - CP7011B0A - Pressure Compensator Cartridge

In stock - ready to ship

Order now for delivery between 22 May and 26 May
Free shipping on orders over €60

Pay Securely with

Danfoss - CP7011B0A - Pressure Compensator Cartridge

Danfoss - CP7011B0A - Pressure Compensator Cartridge

€50.43

(Excl. VAT)

Price

(Excl. VAT)

€50.43

Danfoss
Danfoss develops advanced hydraulic and electronic control systems for agricultural machinery, including tractors and harvesters. The brand is known for its energy-efficient solutions, such as pumps, valves, and power units. Its technologies optimize precision and productivity in modern farming operations. Shop more than 1,238 genuine Danfoss spare parts.

Product Details

Brand
Danfoss
Note
Intermittent switch duration, fast reaction, good flow and pressure characteristics.
Seal
Order no.: with code CP 9-4.12.006
Size
CP12-3S Inch
Unit
Each
Flow rate
150 l/min
Torque Nm
68 - 75 N·m
Extra info
Always in combination with other valves for pressure and flow control at high volume flow and medium pressure
Designed for
Always in combination with other valves for pressure and flow control at high volume flow and medium pressure.
Total length
81.3 mm
BScrew length
55,9 mm
Pressure max.
210 BAR
Technical info

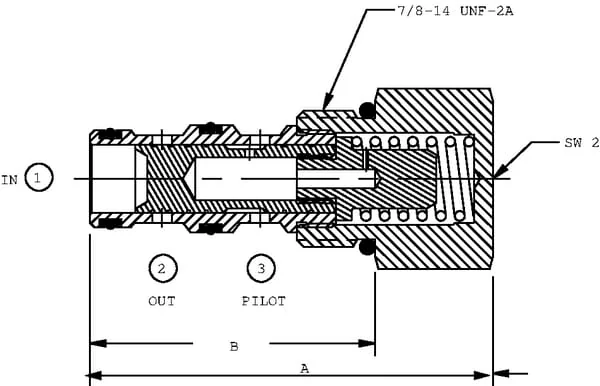

Pressure compensators are used in combination with other valves for pressure and flow control. The valve is normally closed by spring pressure, through flow from 1 to 2 is possible only when the control pressure at 1 is higher than the spring loading and the pilot pressure at 3. When the pressure at pilot 3 is removed, a flow from 1 to 2 is achieved provided the pressure at 1 is sufficiently high to overcome the spring force. Show more
SW2Wrench size other end
38.1 mm
Manufacturer
Danfoss

Similar items you might like

  • Danfoss

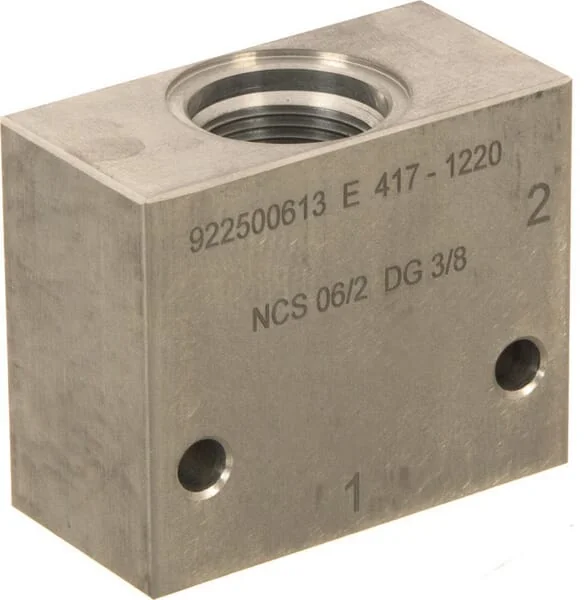

    Danfoss - CP9062A06ANCS - Aluminum Housing NCS 06/2 3/8 BSP

    Danfoss

    €26.79

  • Danfoss

    Danfoss - CP9063A06ANCS - Aluminum House NCS 06/3 3/8

    Danfoss

    €44.22

  • Danfoss

    Danfoss - CP9103A08 - Aluminum Housing Cp10-3 -A-08 (1/2")

    Danfoss

    €35.42

  • Danfoss

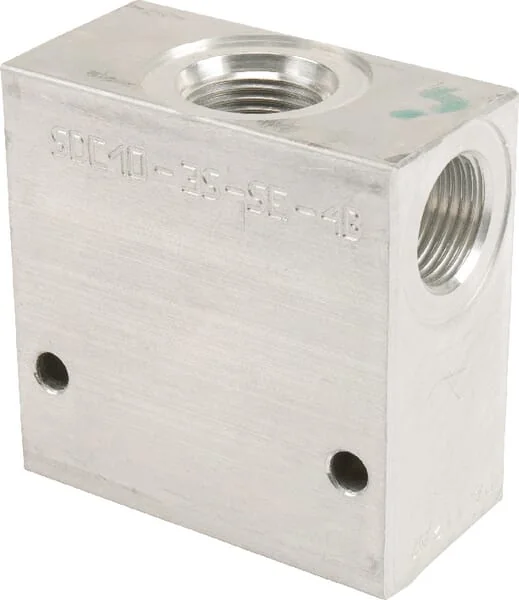

    Danfoss - CP9103A08M - Aluminum Housing SDC10-3 -A-0
