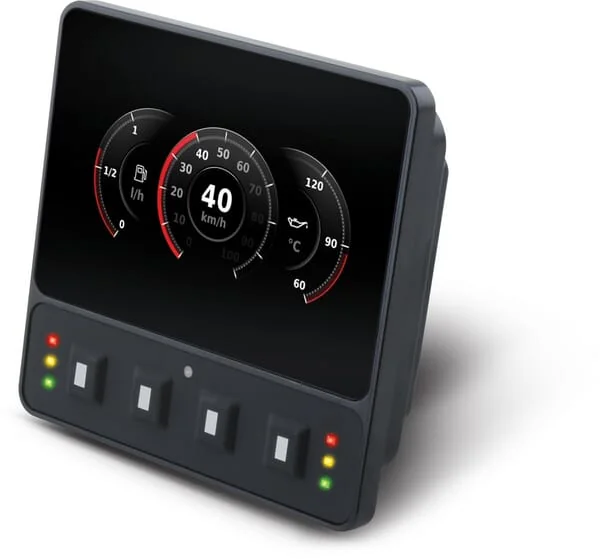

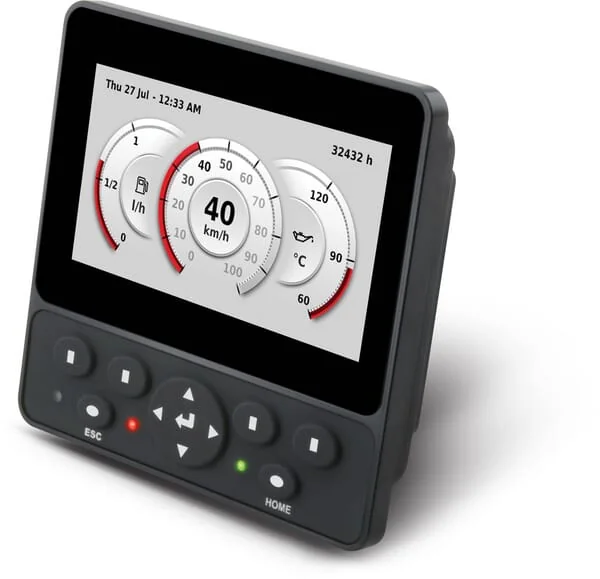

Danfoss - DM430E11197974 - HMI-Display 4.3"
Danfoss - DM430E11197974 - HMI-Display 4.3"
Danfoss - DM430E11197974 - HMI-Display 4.3"
Danfoss - DM430E11197974 - HMI-Display 4.3"
Danfoss - DM430E11197974 - HMI-Display 4.3"
Danfoss - DM430E11197974 - HMI-Display 4.3"
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping

Pay Securely with

Danfoss - DM430E11197974 - HMI-Display 4.3"

Danfoss - DM430E11197974 - HMI-Display 4.3"

€656.99

(Excl. VAT)

Price

(Excl. VAT)

€656.99

Product Description

With darker settings, the light sensor automatically adjusts the brightness of the screen and switches between the day and night display themes. With the Engine Information Center (EIC) application, the displays from the DM430E series can be set up in a matter of minutes. 16:9 widescreen aspect ratio (480 x 272 resolution) Buttons with backlight and up to 6 LED indicators. Flexible solution for adding up to 2 CAN bus channels or 5 inputs for additional functions. PLUS+1® GUIDE programmable (vector-based screen editor) Supports direct RAM® mounting or bracket installation.
Danfoss
Danfoss develops advanced hydraulic and electronic control systems for agricultural machinery, including tractors and harvesters. The brand is known for its energy-efficient solutions, such as pumps, valves, and power units. Its technologies optimize precision and productivity in modern farming operations. Shop more than 1,238 genuine Danfoss spare parts.

Product Details

Brand
Danfoss
Pros
The optically glued and anti-blinding-coated screen is optimised for use in all lighting conditions. Offers excellent visibility in sunlight and with wide viewing angles. Robust IP66 and IP67 quality (front and rear)
Unit
Each
Model
DM430E-1-1-0-0
Screen size
4,3 Inch
Colour depth
24 bits/sample
Voltage type
DC
Viewing angle
70 °
USB connection
Yes
Max. brightness
700 cd/m²
Nominal voltage
9 V36 V
USB port version
2.0
Screen surface type
Optical bonded Anti-glare coating
Vertical resolution
272 px
Horizontal resolution
480 px
Application key included
No
Number of digital inputs
2
Number of analogue inputs
1
Number of digital outputs
1
Number of buttons on the bottom
4
Output connections RS232 number
1
Manufacturer
Danfoss
