Danfoss - JRR075LS006 - Piston Pump 75 CC Load Sensing
Danfoss - JRR075LS006 - Piston Pump 75 CC Load Sensing
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping

Pay Securely with

Danfoss - JRR075LS006 - Piston Pump 75 CC Load Sensing

Danfoss - JRR075LS006 - Piston Pump 75 CC Load Sensing

€1,946.72

(Excl. VAT)

Price

(Excl. VAT)

€1,946.72

Danfoss
Danfoss develops advanced hydraulic and electronic control systems for agricultural machinery, including tractors and harvesters. The brand is known for its energy-efficient solutions, such as pumps, valves, and power units. Its technologies optimize precision and productivity in modern farming operations. Shop more than 1,238 genuine Danfoss spare parts.

Product Details

Brand
Danfoss
Note
not stocked
Unit
Each
Veer
260 BAR
Control
LS
Benefits
Extremely reliable Various pump controllers available Energy saving
ID number
83026479
Properties
Proven quality Long service life Very reliable Low noise emission Quick response time
Shaft type
K4 = Straight keyed SAE-C ø 31.7mm
Pressure max.
23-200 BAR
Stroke volume
75 cm³/rev
Technical info
Support bearing required for use of v-belt drive
Housing material
Cast iron
Sealing material
Viton
Application range
Stationary systems Mobile systems
Master model code
JR-R-S75C-LS-20-23-NN-N-3-K4NE-A2N-NNN-JJJ-NNN
Max pressure peak
350 BAR
Max rotation speed
2400 r/min
Min rotation speed
500 r/min
Direction of rotation
CW
Displacement per stroke
75 cm³
Prefered rotation direction
Clockwise (CW)
Suitable for original number
83026479
Max continous working pressure
260,5 BAR
Manufacturer
Danfoss

Similar items you might like

  • Danfoss

    Danfoss - JRR075LS007 - Piston Pump 75 CC Load Sensing

    Danfoss

    €1,857.88

  • Danfoss

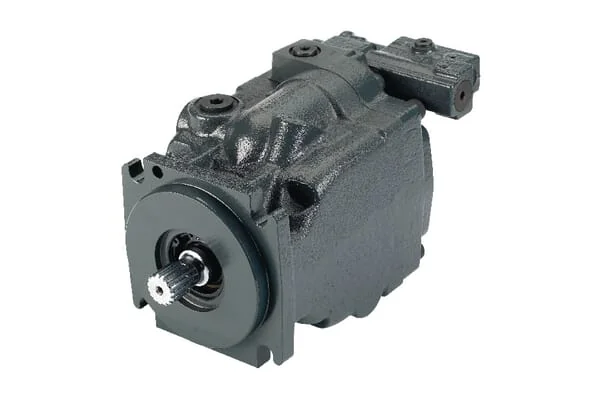

    Danfoss - JRRS45BLS001 - Piston Pump 45 CC Load Sensing

    Danfoss

    €1,494.13

  • Danfoss

    Danfoss - JRRS75CLS003 - Piston Pump 75 CC Load Sensing

    Danfoss

    €1,851.60

  • Danfoss

    Danfoss - JS100011010617 - Joystick JS1000

    Danfoss

    €1,324.04

  • Danfoss

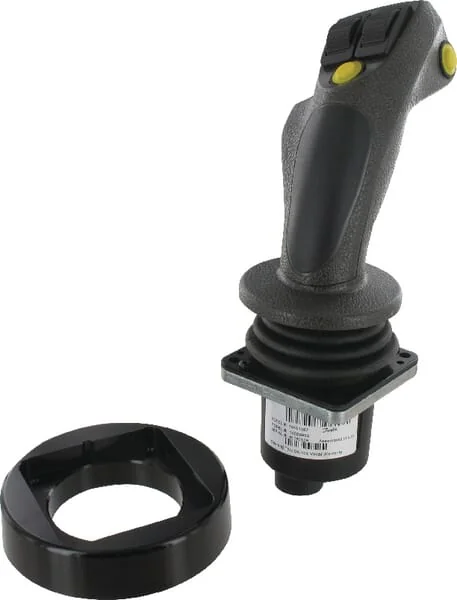

    Danfoss - JS100083024541 - Joystick JS1000

    Danfoss

    €1,421.31

  • Danfoss

    Danfoss - JS1H83055746 - Joystick JS1-H

    Danfoss

    €1,086.90

  • Danfoss

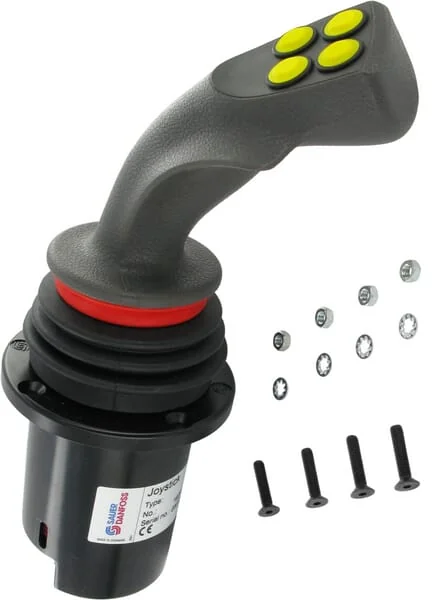

    Danfoss - JS1H83062667 - Joystick JS1-H
