Danfoss - OMRX20011186665 - Orbit Motor, Shaft Ø25,whd,std.
Danfoss - OMRX20011186665 - Orbit Motor, Shaft Ø25,whd,std.
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping

Pay Securely with

Danfoss - OMRX20011186665 - Orbit Motor, Shaft Ø25,whd,std.

Danfoss - OMRX20011186665 - Orbit Motor, Shaft Ø25,whd,std.

€413.75

(Excl. VAT)

Price

(Excl. VAT)

€413.75

Product Description

Genuine Danfoss OMRX series orbit motor, model OMRX20011186665, featuring a 200 cm³/rev displacement. This robust hydraulic motor is equipped with a 25 mm cylindrical shaft with parallel key and a 2-bolt SAE A mounting flange. It includes G 1/2 side ports and a G 1/4 drain port, suitable for medium-duty applications requiring reliable hydraulic power. Designed for continuous operation with a maximum pressure of 175 bar and a maximum continuous torque of 400 Nm, reaching speeds up to 300 RPM.
Danfoss
Danfoss develops advanced hydraulic and electronic control systems for agricultural machinery, including tractors and harvesters. The brand is known for its energy-efficient solutions, such as pumps, valves, and power units. Its technologies optimize precision and productivity in modern farming operations. Shop more than 1,238 genuine Danfoss spare parts.

Product Details

Brand
danfoss
Series
OMRX
Displacement Cm3 Rev
200
Shaft Diameter (mm)
25
Shaft Type
Cylindrical with parallel key
Mounting Type
2-bolt SAE A
Port Type
G 1/2 side ports
Drain Port Type
G 1/4
Max Continuous Pressure (bar)
175
Max Intermittent Pressure (bar)
225
Max Continuous Torque (Nm)
400
Max Intermittent Torque (Nm)
500
Max Speed (rpm)
300
Weight (kg)
9.5
Quality
OEM Supplier
Manufacturer
danfoss

Similar items you might like

  • Danfoss

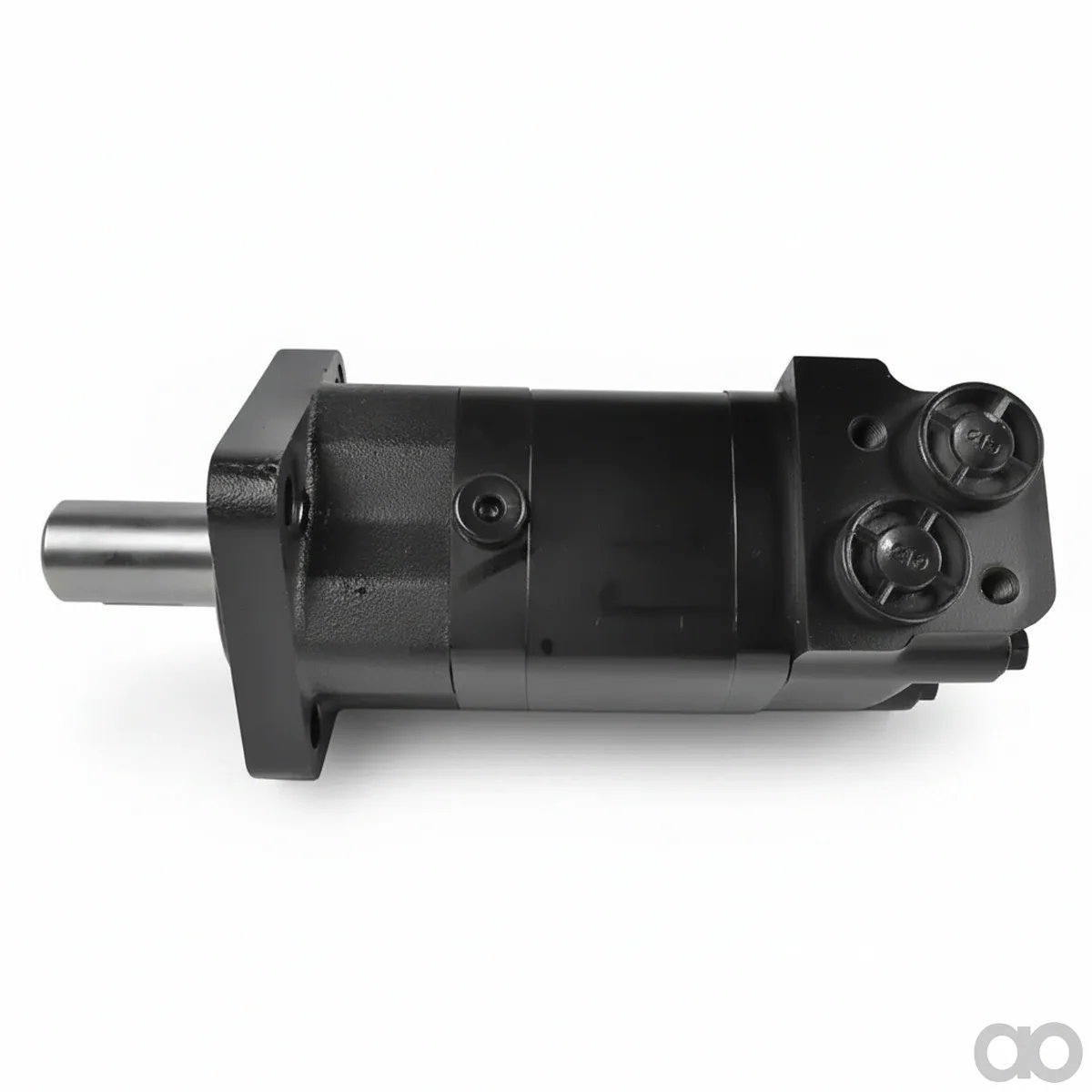

    Danfoss - OMS250151F0505 - Motor 151F0505
