Danfoss - OMTS315151B3039 - Short Orbit Motor

OEM Supplier

SKU: danfoss-omts315151b3039

Danfoss - OMTS315151B3039 - Short Orbit Motor

€1,317.84€1,126.36 (Excl. VAT)

RRP:€1,520.02
Save €202.16

In stock - ready to ship

Order now for shipping within 2 to 4 business days

Shipping fee: €11.99 incl. VAT

Pay Securely with

Price

€1,317.84

Brand
Part Number
OMTS315151B3039
Package length (mm)
443
Package width (mm)
238
Package height (mm)
234
Unit
Each
Max. power
33,5 kW
Shaft type
Straight parallel
Displacement
315 cm³/rev
Flange shape
Short
L1Rotor length
37 mm
Max. flow rate
125 l/min
Shaft diameter
37,6 mm
Technical info
Orbital motor offers compact construction and simple mounting. High torque and shaft load, because of shorter distance from mounting flange to the point of load application.
LHousing length
166 mm
Long description
Orbital motor type OMTS
Application range
In combination with gearboxes, e.g., as a wheel drive
Max pressure peak
280 BAR
Max rotation speed
380 r/min
Min rotation speed
7 r/min
Main port thread type
G
Max continuous torque
950 N·m
Shaft number of teeth
16
Drain port thread type
G
Number of mounting holes
4
Main port thread diameter
3/4 Inch
Drain port thread diameter
1/4 Inch
Max. continous working pressure
200 BAR
Max intermittend working pressure
240 BAR
Manufacturer

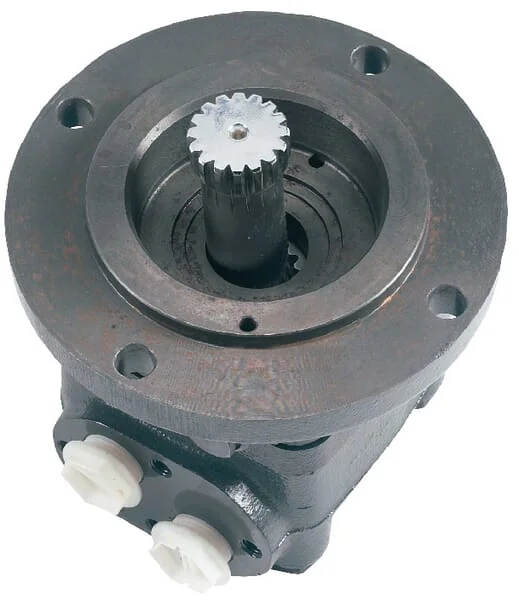

The Danfoss OMTS315151B3039 is a robust short orbit motor, engineered for demanding applications requiring high torque and reliable performance. This genuine Danfoss motor features a displacement of 315 cm³/rev, a 38.1 mm straight keyed shaft, and a 4-bolt SAE C mount for secure installation. It is equipped with G 3/4 ports and G 1/4 drain, ensuring efficient hydraulic connections. Designed for durability and precision, the OMTS315151B3039 is suitable for a wide range of agricultural, construction, and industrial machinery.
Danfoss
Danfoss A/S is a global leader in climate and energy-efficient solutions, founded in 1933 by Mads Clausen on his parents' farm in Nordborg, Denmark. The company began with the invention of the expansion valve for refrigeration systems and has since grown into a multinational corporation. Headquartered in Nordborg, Denmark, Danfoss remains a privately held company, known for its innovative approach to engineering and sustainable technologies. Danfoss offers a broad portfolio of products across various segments, including heating, cooling, power solutions, and drives. In the agricultural sector, its hydraulic and electronic control systems are vital components for modern machinery. The brand is recognized for its advanced hydrostatic transmissions, such as the H1 series, and its comprehensive range of hydraulic pumps, motors, valves, and steering components, which enhance precision and efficiency in tractors, harvesters, and other heavy equipment. Partao provides a wide selection of genuine Danfoss spare parts, including Seal Kits, Air Filters, Ball Bearings, Bearing Housings, and Bolts & Fasteners. Agricultural professionals worldwide choose Danfoss components for their robust construction, advanced control capabilities, and contribution to operational efficiency. The brand's commitment to developing intelligent and energy-saving solutions helps farmers and operators optimize their machinery's performance, reduce fuel consumption, and achieve greater productivity in demanding field conditions. Shop more than 1,904 genuine Danfoss spare parts.
