Home
Electrical, Lighting & Batteries
Other Electrical Components

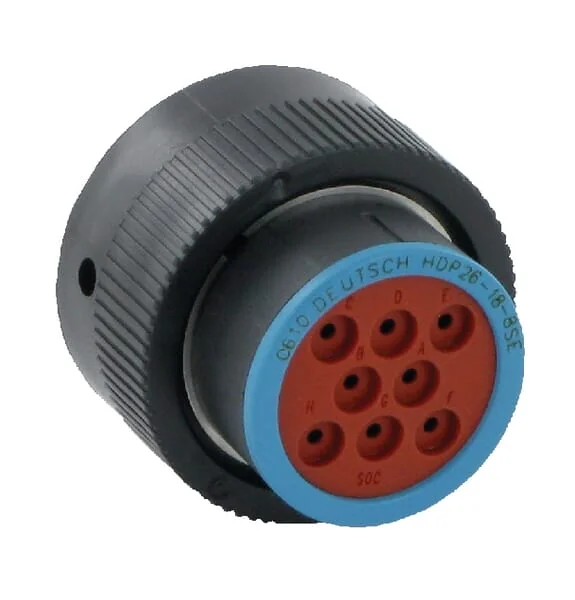

Deutsch - DSHDP26188SE - Socket 8 Pin Female HDP20
Deutsch - DSHDP26188SE - Socket 8 Pin Female HDP20
Deutsch - DSHDP26188SE - Socket 8 Pin Female HDP20
Deutsch - DSHDP26188SE - Socket 8 Pin Female HDP20
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping on orders over €60

Pay Securely with

Deutsch - DSHDP26188SE - Socket 8 Pin Female HDP20

Deutsch - DSHDP26188SE - Socket 8 Pin Female HDP20

€32.57

(Excl. VAT)

Price

(Excl. VAT)

€32.57

Product Details

Brand
Deutsch
Type
SH24
Unit
Each
Series
HDP
Benefits
Designed specifically for dirty environments Wear-resistant plastic Very user-friendly
Properties
Housing size: Shell 18 & Shell 24 Integrated cable seal Silicone seal
Consists of
Individual components (self-assembly plug)
DIN standard
40050
Technical info
HDP20 is the plastic version of HD30
Connection type
DS12
Nominal voltage
250 V
Number of poles
8
Housing material
Plastic
Application range
As connection plug for electronics under the engine cover, on transmissions or in cabs
Electric category
Sensor Signal
Protection class IP
6K9K
Content in sale unit
1 pcs
Nominal voltage range
12-48 V
Max working temperature
125 °C
Min working temperature
-55 °C
Connection 2, connection type
DS16
Connection 3, connection type
DS16
Cable position type - connection no 1
Standard
Connection type male/female - connection no 1
Male
Manufacturer
Deutsch
