Deutz Fahr - 12191004 - Piston
Deutz Fahr - 12191004 - Piston
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping

Pay Securely with

Deutz Fahr - 12191004 - Piston

Deutz Fahr - 12191004 - Piston

€432.38

(Excl. VAT)

Price

(Excl. VAT)

€432.38

Product Description

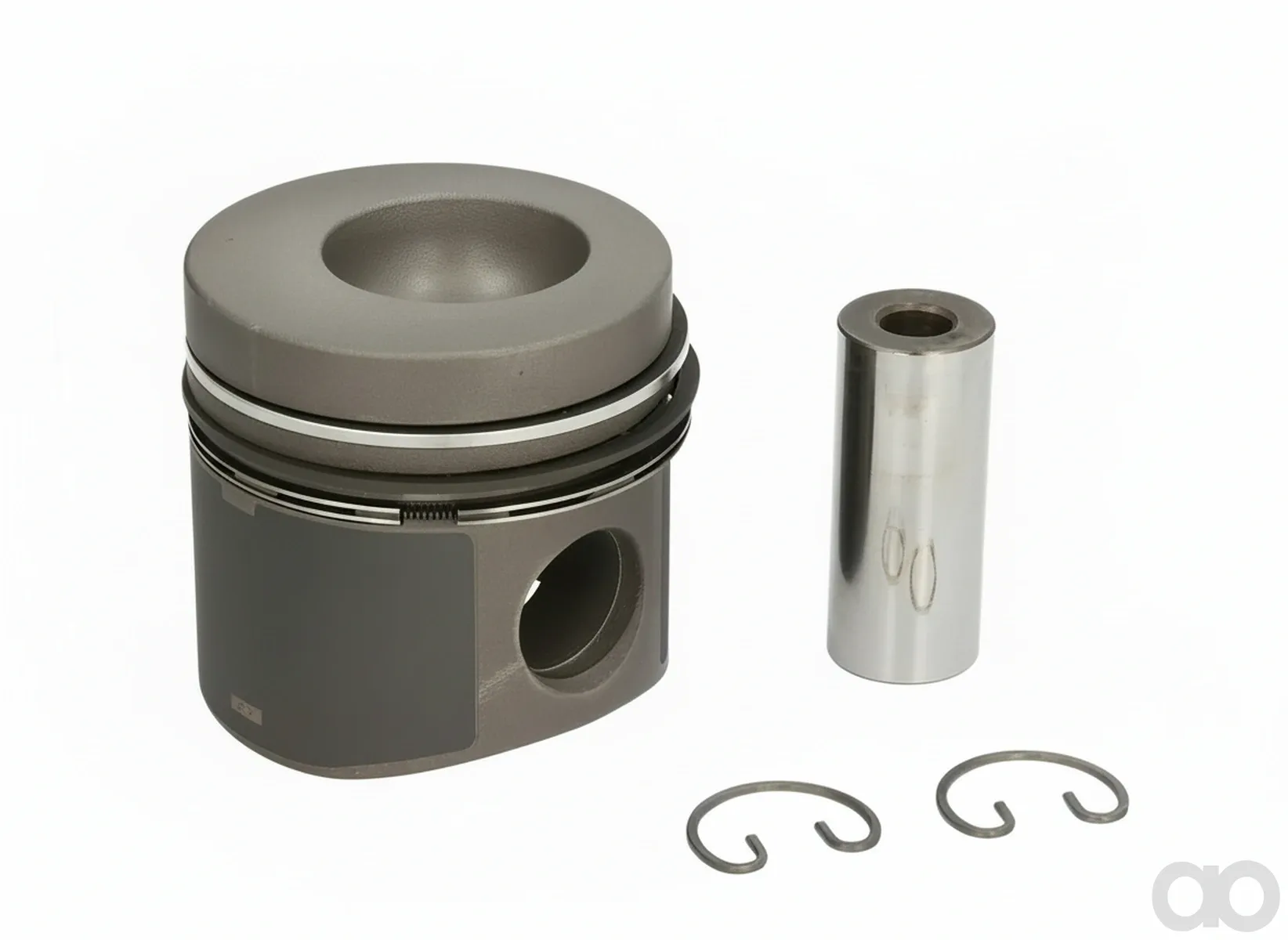

This genuine DEUTZ-FAHR 12191004 piston is designed for DEUTZ F3L912, F4L912, F5L912, and F6L912 engines. It features a 100 mm bore, 35 mm x 80 mm pin, 65 mm compression height, and 110 mm overall height. The piston includes a 50 mm combustion bowl with a 19 mm depth and is designed for 3 piston rings. It is suitable for a wide range of DEUTZ-FAHR D and DX series tractors including D4006, D4506, D5006, D5206, D5506, D6006, D6206, D6806, D7006, D7206, D7506, D8006, D9006, D10006, D13006, DX80, DX85, DX90, DX110, DX120, DX140, DX145, DX160, DX4.10, DX4.30, DX4.50, DX4.70, DX6.05, DX6.10, DX6.30, DX6.50, DX7.10 models.
Deutz Fahr
Deutz-Fahr manufactures tractors, combine harvesters, and agricultural machinery for a wide range of farming applications. The brand is known for its innovative technology, such as GPS-guided systems and efficient powertrains. Deutz-Fahr equipment is used in crop production, livestock farming, and forestry. Shop more than 97,375 genuine Deutz-fahr spare parts.

Product Details

Brand
deutz-fahr
Equivalent OEM Part Numbers

Deutz

02928929029294290423023204230628042306300423063112191004292892929294294230232423062842306304230631
Fits

Deutz

F3L912F4L912F5L912F6L912

Deutz Fahr

D4006D4506D5006D5206D5506D6006D6206D6806D7006D7206D7506D8006D9006D10006D13006DX80DX85DX90DX110DX120DX140DX145DX160DX4.10DX4.30DX4.50DX4.70DX6.05DX6.10DX6.30DX6.50DX7.10
Piston Diameter (mm)
100
Pin Diameter (mm)
35
Pin Length (mm)
80
Overall Height (mm)
110
Compression Height (mm)
65
Combustion Bowl Diameter (mm)
50
Combustion Bowl Depth (mm)
19
Number Of Rings
3
Weight (kg)
1.2
Quality
Genuine OEM Part
Manufacturer
deutz-fahr
