Di Natale Bertelli - TC3036 - Telescopic Cylinder TC 3036 Ball
Di Natale Bertelli - TC3036 - Telescopic Cylinder TC 3036 Ball
Di Natale Bertelli - TC3036 - Telescopic Cylinder TC 3036 Ball
Di Natale Bertelli - TC3036 - Telescopic Cylinder TC 3036 Ball

In stock - ready to ship

Order now for delivery between 13 July and 16 July
Free shipping

Pay Securely with

Di Natale Bertelli - TC3036 - Telescopic Cylinder TC 3036 Ball

Di Natale Bertelli - TC3036 - Telescopic Cylinder TC 3036 Ball

€525.78

(Excl. VAT)

Price

(Excl. VAT)

€525.78

Product Description

The Di Natale-Bertelli TC3036 is a genuine 3-stage telescopic hydraulic cylinder designed for various agricultural and industrial applications. It features a 75mm bore, a 900mm stroke, and a closed length of 450mm. This robust cylinder is equipped with a 30mm rod and a 25.4mm (1 inch) ball mount, capable of operating at a maximum pressure of 200 bar. Weighing 11.5 kg, the TC3036 ensures reliable hydraulic performance.
Di Natale Bertelli
Di Natale Bertelli is a brand associated with components for agricultural and industrial machinery. While specific historical details such as its founding year, founder, or headquarters location are not widely published, the company has established a presence in the market by supplying various essential parts. Its focus appears to be on providing robust and reliable components that support the operational integrity of heavy-duty equipment across different sectors. The product range from Di Natale Bertelli typically includes mechanical and structural components vital for the assembly and maintenance of machinery. This can encompass items like fasteners, brackets, and drive system elements. The brand's offerings are designed to meet the demanding specifications required for agricultural applications, where durability and performance under strenuous conditions are paramount. The manufacturer aims to ensure that its parts contribute to the longevity and efficiency of the machines they are integrated into. At Partao, you can find a comprehensive selection of Di Natale Bertelli spare parts across various categories. Our top categories for Di Natale Bertelli include Bolts & Fasteners, Brackets & Supports, Drive Shafts, Hitch Balls, and Hoses & Fittings, ensuring you can maintain your equipment with genuine components. Over 228 genuine Di Natale Bertelli spare parts are available at Partao. Maintenance professionals and equipment owners often rely on Di Natale Bertelli components for their proven reliability and compatibility with a wide range of machinery. The availability of these parts helps ensure that agricultural equipment can be kept in optimal working condition, minimizing downtime and supporting continuous operation in the field. These components are crucial for the structural and mechanical integrity of various agricultural machines.

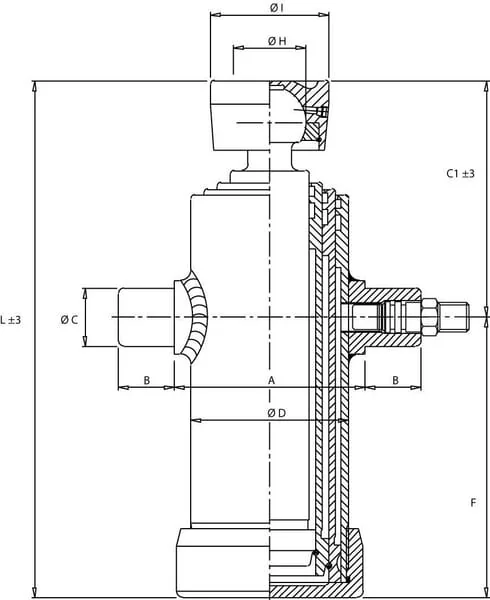

Product Details

Brand
Di Natale-Bertelli
Part Numbers
TC3036
Unit
Each
Stroke
1283 mm
Weight
38 kg
Properties
Unpainted Low installation dimensions Excellent running properties Long service life
DIN standard
1629
LMin. length
597 mm
Number of stages
3
Sealing material
Polyurethane
Stage 1 diameter
61 mm
Stage 2 diameter
76 mm
Stage 3 diameter
91 mm
Application range
Trailer tipping cylinder Vehicle construction
Cylinder material
Steel S355J2+N
DOutside diameter
112 mm
Max. piston speed
0,5 m/s
Application category
Telescopic
CSide shaft diameter
35 mm
Max. working pressure
180 BAR
Vickers hardness (HV)
HV5/12=500/550
BOil connection length
40 mm
Max. capacity - stage 2
8,1 t
Max. capacity - stage 3
11,7 t
Max. capacity at 180 bar
11,7 t
Oil connection thread type
Metric
Oil connections thread pitch
1.50 mm
Mounting type - rod connection
Ball
Oil connection thread diameter
M18
Piston surface roughness range
0.05-0.15 µm
Mounting type - cylinder connection
Trunnion
FMounting hole to swivel tap distance
445 mm
HMounting hole diameter - rod connection
55 mm
Manufacturer
Di Natale-Bertelli
