Di Natale Bertelli - TC4026F - Telescopic Cylinder + Eye 895mm
Di Natale Bertelli - TC4026F - Telescopic Cylinder + Eye 895mm
Di Natale Bertelli - TC4026F - Telescopic Cylinder + Eye 895mm
Di Natale Bertelli - TC4026F - Telescopic Cylinder + Eye 895mm
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping

Pay Securely with

Di Natale Bertelli - TC4026F - Telescopic Cylinder + Eye 895mm

Di Natale Bertelli - TC4026F - Telescopic Cylinder + Eye 895mm

€490.60

(Excl. VAT)

Price

(Excl. VAT)

€490.60

Product Description

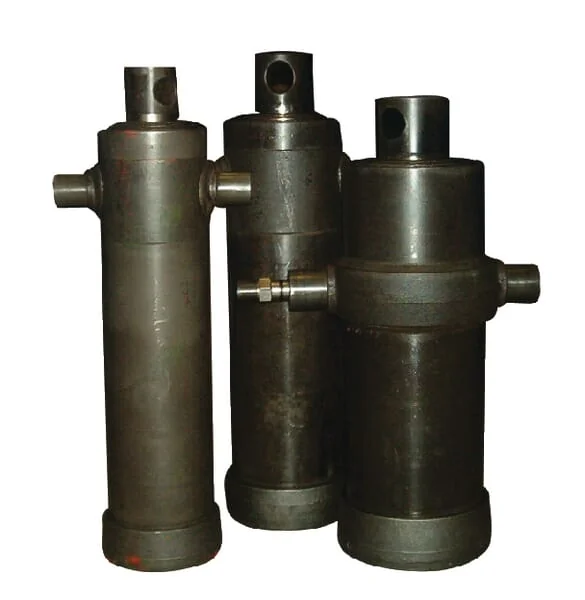

The Di Natale-Bertelli TC4026F is a robust telescopic hydraulic cylinder designed for demanding agricultural and industrial machinery. This genuine Di Natale-Bertelli component features an eye mounting type and a closed length of 895mm, providing reliable hydraulic power for various lifting and pushing applications. Manufactured to high standards, the TC4026F ensures optimal performance and durability in challenging environments.
Di Natale Bertelli

Product Details

Brand
Di Natale-Bertelli
Unit
Each
Stroke
895 mm
Weight
36,5 kg
Properties
Unpainted Low installation dimensions Excellent running properties Long service life
DIN standard
1629
LMin. length
580 mm
Oil capacity
6,8 l
Number of stages
2
Sealing material
Polyurethane
Stage 1 diameter
88 mm
Stage 2 diameter
107 mm
Application range
Trailer tipping cylinder Vehicle construction
Cylinder material
Steel S355J2+N
DOutside diameter
124 mm
Max. piston speed
0,5 m/s
Application category
Telescopic
CSide shaft diameter
40 mm
Max. working pressure
180 BAR
Vickers hardness (HV)
HV5/12=500/550
BOil connection length
40 mm
Max. capacity - stage 2
16,1 t
Max. capacity at 180 bar
16,1 t
Mounting type - rod connection
Bore
Piston surface roughness range
0.05-0.15 µm
IMounting bush outside diameter
35 mm
Mounting type - cylinder connection
Trunnion
C1Oil connection to rod end distance
115 mm
FMounting hole to swivel tap distance
465 mm
HMounting hole diameter - rod connection
36 mm
Mounting hole diameter - cylinder connection
40 mm
Manufacturer
Di Natale-Bertelli
