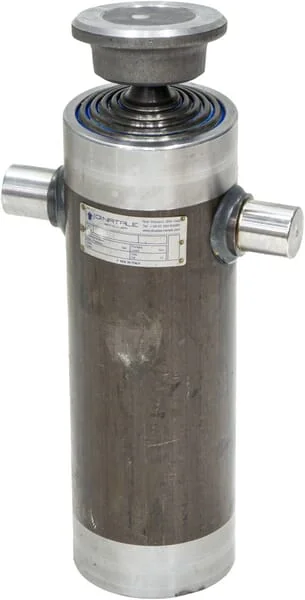

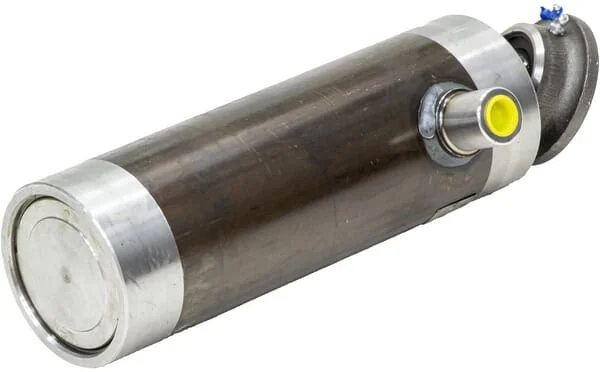

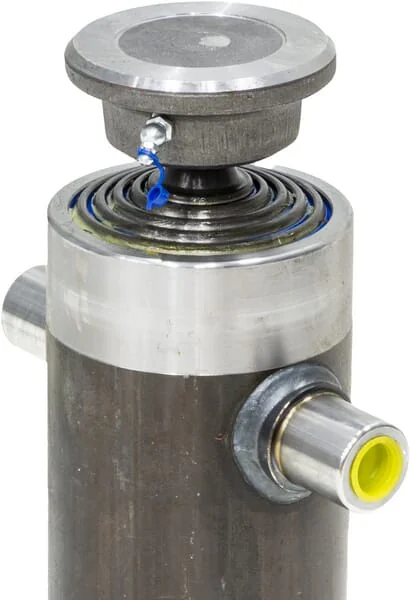

Di Natale Bertelli - TCK43271S - Telescopic Ram Diameter 110x814

SKU: di-natale-bertelli-tck43271s

Di Natale Bertelli - TCK43271S - Telescopic Ram Diameter 110x814

€338.31

(excl. VAT)
RRP:€413.92
Save €75.62
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €6.00 excl. VAT

Pay Securely with

Price

(Excl. VAT)

€338.31

Di Natale Bertelli
Di Natale Bertelli is a brand associated with components for agricultural and industrial machinery. While specific historical details such as its founding year, founder, or headquarters location are not widely published, the company has established a presence in the market by supplying various essential parts. Its focus appears to be on providing robust and reliable components that support the operational integrity of heavy-duty equipment across different sectors. The product range from Di Natale Bertelli typically includes mechanical and structural components vital for the assembly and maintenance of machinery. This can encompass items like fasteners, brackets, and drive system elements. The brand's offerings are designed to meet the demanding specifications required for agricultural applications, where durability and performance under strenuous conditions are paramount. The manufacturer aims to ensure that its parts contribute to the longevity and efficiency of the machines they are integrated into. At Partao, you can find a comprehensive selection of Di Natale Bertelli spare parts across various categories. Our top categories for Di Natale Bertelli include Bolts & Fasteners, Brackets & Supports, Drive Shafts, Hitch Balls, and Hoses & Fittings, ensuring you can maintain your equipment with genuine components. Over 228 genuine Di Natale Bertelli spare parts are available at Partao. Maintenance professionals and equipment owners often rely on Di Natale Bertelli components for their proven reliability and compatibility with a wide range of machinery. The availability of these parts helps ensure that agricultural equipment can be kept in optimal working condition, minimizing downtime and supporting continuous operation in the field. These components are crucial for the structural and mechanical integrity of various agricultural machines.

Unit
Each
Stroke
814 mm
Benefits
High efficiency Save time during assembly Excellent running properties
Properties
Do not extend up to the end stop High durability and long service life
Consists of
Cylinder with mounted gimbal Bearing blocks No oil connector adapter
DIN standard
1629
Oil capacity
3,6 l
Technical info
Stroke limiter, order no. VFCTS12 recommended
Number of stages
4
Sealing material
Polyurethane
Stage 1 diameter
45 mm
Stage 2 diameter
60 mm
Stage 3 diameter
75 mm
Stage 4 diameter
90 mm
Application range
Tipping cylinder for vans Small to medium-sized trailers
Cylinder material
Steel S355J2+N
Max. piston speed
0,5 m/s
Application category
Telescopic
Max. working pressure
200 BAR
Vickers hardness (HV)
HV5/12=500/550
Max. capacity - stage 2
5,2 t
Max. capacity - stage 3
8,1 t
Mounting type - rod connection
Ball
Oil connection thread diameter
M110
Piston surface roughness range
0.05-0.15 µm
Oil connection to rod end distance
152 mm
Manufacturer
Di Natale-Bertelli
