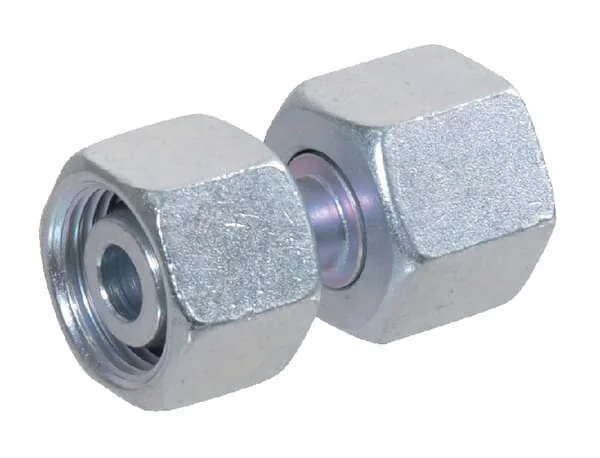

Dietzel - GVO15L22L - Coupling 15l 22l

Dietzel - GVO15L22L - Coupling 15l 22l

Dietzel - GVO15L22L - Coupling 15l 22l

Dietzel - GVO15L22L - Coupling 15l 22l

Number of products

In stock - ready to ship

Order now for delivery between 20 May and 23 May

Free shipping on orders over €60

Pay Securely with

Dietzel - GVO15L22L - Coupling 15l 22l

Dietzel - GVO15L22L - Coupling 15l 22l

€10.40

(Excl. VAT)

Price

(Excl. VAT)

€10.40

Number of products

Product Details

Brand

Pros

Reduced risk of leakage

Unit

Each

Shape

Straight - 2 connection sides

Series

15L 22L

Includes

Body Gland nuts Sealing cone with O-ring

Cone angle

24 °

DIN standard

2401

LTotal length

41 mm

Surface treatment

Zinc-plated

Connection 2, type

Swivel nut

Connection no 1 type

Swivel nut

Max working pressure

315 BAR

D2Connection 2, diameter

22 mm

Connection 2, thread type

Metric

D1Connection no 1 diameter

15 mm

Connection no 1 thread type

Metric

M2Connection 2, thread pitch

1.50 mm

M1Connection no 1 thread pitch

1.50 mm

Connection no 1 thread diameter

M22

M2Connection 2, thread diameter

M22

Connection 2, type - male/female

Female

Connection no 1 type - male/female

Female

Manufacturer

Dietzel
