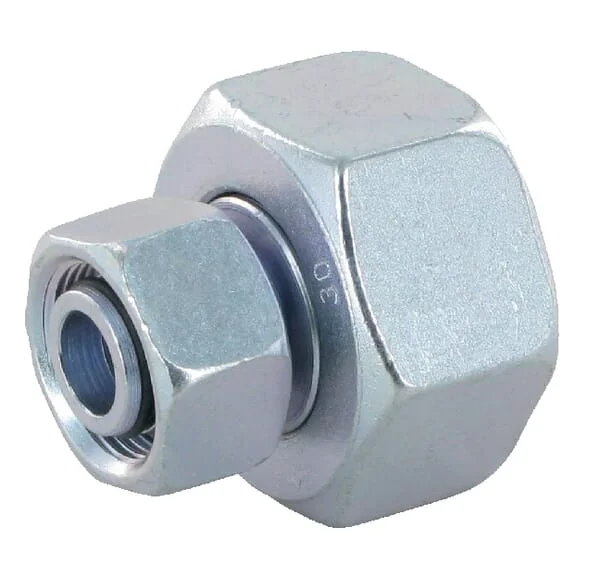

Dietzel - GVO22L30S - Coupling 22l 30s

Dietzel - GVO22L30S - Coupling 22l 30s

Dietzel - GVO22L30S - Coupling 22l 30s

Dietzel - GVO22L30S - Coupling 22l 30s

Number of products

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Free shipping on orders over €60

Pay Securely with

Dietzel - GVO22L30S - Coupling 22l 30s

Dietzel - GVO22L30S - Coupling 22l 30s

€17.07

(Excl. VAT)

Price

(Excl. VAT)

€17.07

Number of products

Product Details

Brand

Pros

Reduced risk of leakage

Unit

Each

Shape

Straight - 2 connection sides

Series

22L 30S

Includes

Body Gland nuts Sealing cone with O-ring

Cone angle

24 °

DIN standard

2401

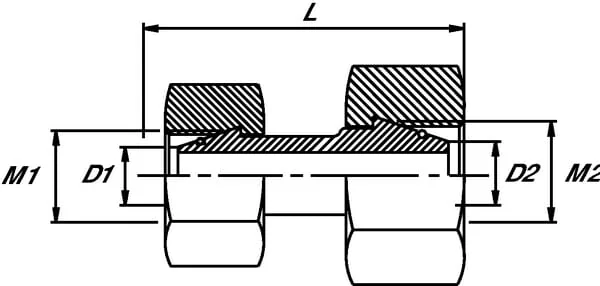

LTotal length

48 mm

Surface treatment

Zinc-plated

Connection 2, type

Swivel nut

Connection no 1 type

Swivel nut

Max working pressure

160 BAR

D2Connection 2, diameter

30 mm

Connection 2, thread type

Metric

D1Connection no 1 diameter

22 mm

Connection no 1 thread type

Metric

M2Connection 2, thread pitch

2.00 mm

M1Connection no 1 thread pitch

2.00 mm

Connection no 1 thread diameter

M30

M2Connection 2, thread diameter

M42

Connection 2, type - male/female

Female

Connection no 1 type - male/female

Female

Manufacturer

Dietzel
